Jamison · Clean-room doors
Jamoclean Cleanroom Swing Door
A molded fiberglass swing door for cleanrooms and labs: a 1 3/4 in. reinforced panel with a seamless gelcoat shell, single or double, manual or powered.
D.W. Ross supplies Jamison cooler, freezer and clean-room doors, sized to the opening before anything is ordered. It can install the door it supplies or deliver it material-only for your contractor.
Specifications
As published by Jamison for the Jamoclean® High-Performance Cleanroom Swing Doors.
Jamison Jamoclean Cleanroom Swing Door
Send the opening size and the temperature on each side. We confirm the door, its rating and its options.
Request a quote →- Manufacturer
- Jamison Door Company
- Catalog group
- Clean-room doors
- Data read on
- 2026-10-14
- Door type
- Swing
- Application
- Clean room, Laboratory
- Jamison line
- Jamoclean (Jamotuf fiberglass and stainless doors)
- Maximum leaf weight
- 265 lbs (Medium Duty); 330 lbs (Heavy Duty)
- Maximum opening
- 54" W, 120" H (Single); 108" W, 120" H (Double); Custom sizes available
- Opening cycles
- 2,000,000 cycles (4,000/day)
- Protection class
- IP32
- Operation
- Manual or power
- Opening and closing time
- 2-12 seconds (opening), 4-12 seconds (closing)
- Panel construction
- 1 3/4" reinforced panel filled with urethane closed-cell insulated foam core that is CFC- and HCFC-free.
- Finish
- Molded 25 mil gloss gelcoat surface
- Frame construction
- Mitered and reinforced for strength and accurate installation
- Availability
- Confirmed by D.W. Ross in the quote for your opening.
How Jamison builds it
- Molded 3/8 in. solid fiberglass perimeter edge and a 25-mil gloss gelcoat.
- Gaskets, panel-mounted astragals and a bottom sweep gasket.

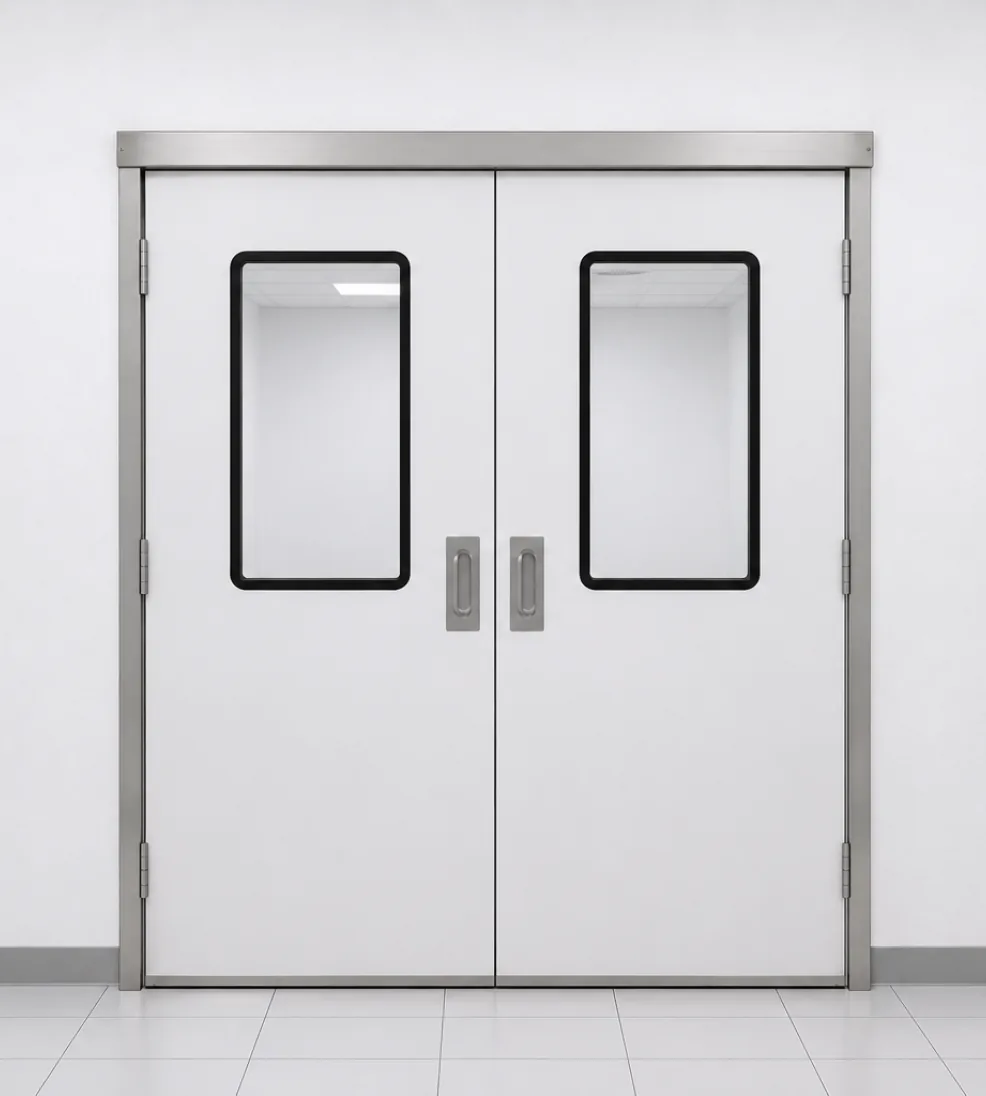

- Single or double; manual or power operated; flush vision panels.

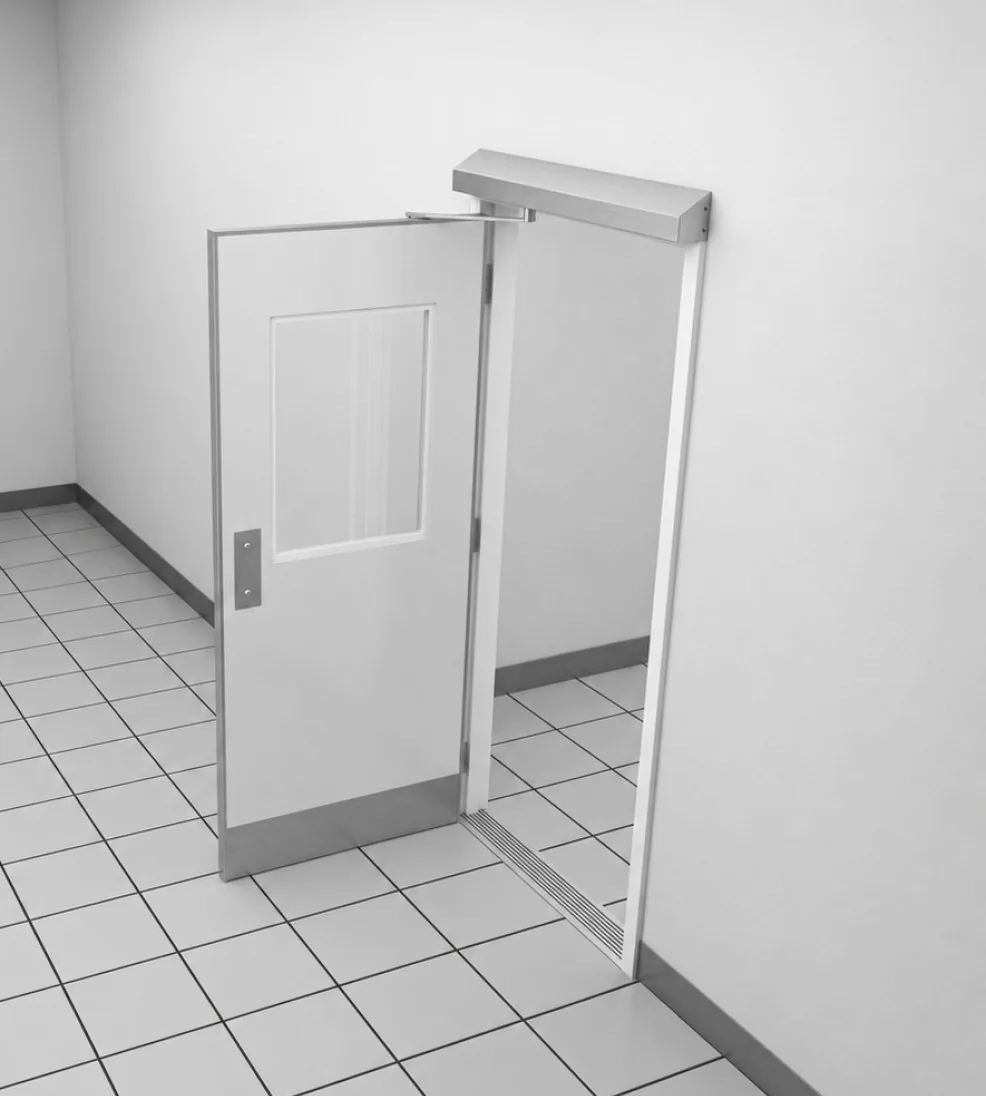

- CleanDrive brushless operator, which Jamison lists under UL 325.
More photographs
Jamison literature
We send Jamison’s current sheet with the quote, so you are never working from an old revision. Send it back with your drawings and we will check the door against the opening.
- Data sheetJamison product datasheet: Jamoclean swing cleanroom doorsPDF
Product data and images: Jamison Door Company. Values as published by Jamison on its product pages; the current Jamison data sheet is the reference, and D.W. Ross supplies it with the quote. Read on 2026-10-14 from Jamison’s public product page for the Jamoclean® High-Performance Cleanroom Swing Doors.
Tell us about the opening.
The opening size, the temperature on each side, the traffic and how the room is cleaned. We confirm the door, its rating and its options, and quote it.
