Jamison · Fiberglass and stainless personnel doors
Jamocor Fiberglass Swing Door
A 1 3/4 in. molded fiberglass personnel door and frame for wet and corrosive rooms, single or double, with vision panel, louver and hardware options.
D.W. Ross supplies Jamison cooler, freezer and clean-room doors, sized to the opening before anything is ordered. It can install the door it supplies or deliver it material-only for your contractor.
Specifications
As published by Jamison for the Jamocor® Swing Fiberglass Doors.
Jamison Jamocor Fiberglass Swing Door
Send the opening size and the temperature on each side. We confirm the door, its rating and its options.
Request a quote →- Manufacturer
- Jamison Door Company
- Catalog group
- Fiberglass and stainless personnel doors
- Data read on
- 2026-10-14
- Door type
- Swing
- Application
- Wash-down, Food processing, Corrosive areas
- Jamison line
- Jamocor (Jamotuf fiberglass and stainless doors)
- Maximum opening (width and height in clear)
- 54" W X 120" H (Single); 108" W X 120" H (Double)
- Maximum leaf weight
- 265 lbs (Medium Duty); 330 lbs (Heavy Duty)
- Working temperature
- 5° to 122° F
- Duty cycle
- Continuous 100%
- Opening cycles
- 2,000,000 cycles (4,000/day)
- Panel construction
- 1 3/4" reinforced panel filled with urethane closed-cell insulated foam core that is CFC- and HCFC-free.
- Finish
- Molded 25 mil gloss gelcoat surface
- Frame construction
- Mitered and reinforced for strength and accurate installation.
- Availability
- Confirmed by D.W. Ross in the quote for your opening.
How Jamison builds it
- Press-molded seamless panel, crosslinked on all six sides.
- Composite closed-cell structurals and stiffeners in the foam core.
- Pultruded fiberglass frames with pigment through the laminate.
- Vision panels, louvers, stainless frames and manual or automatic operation.

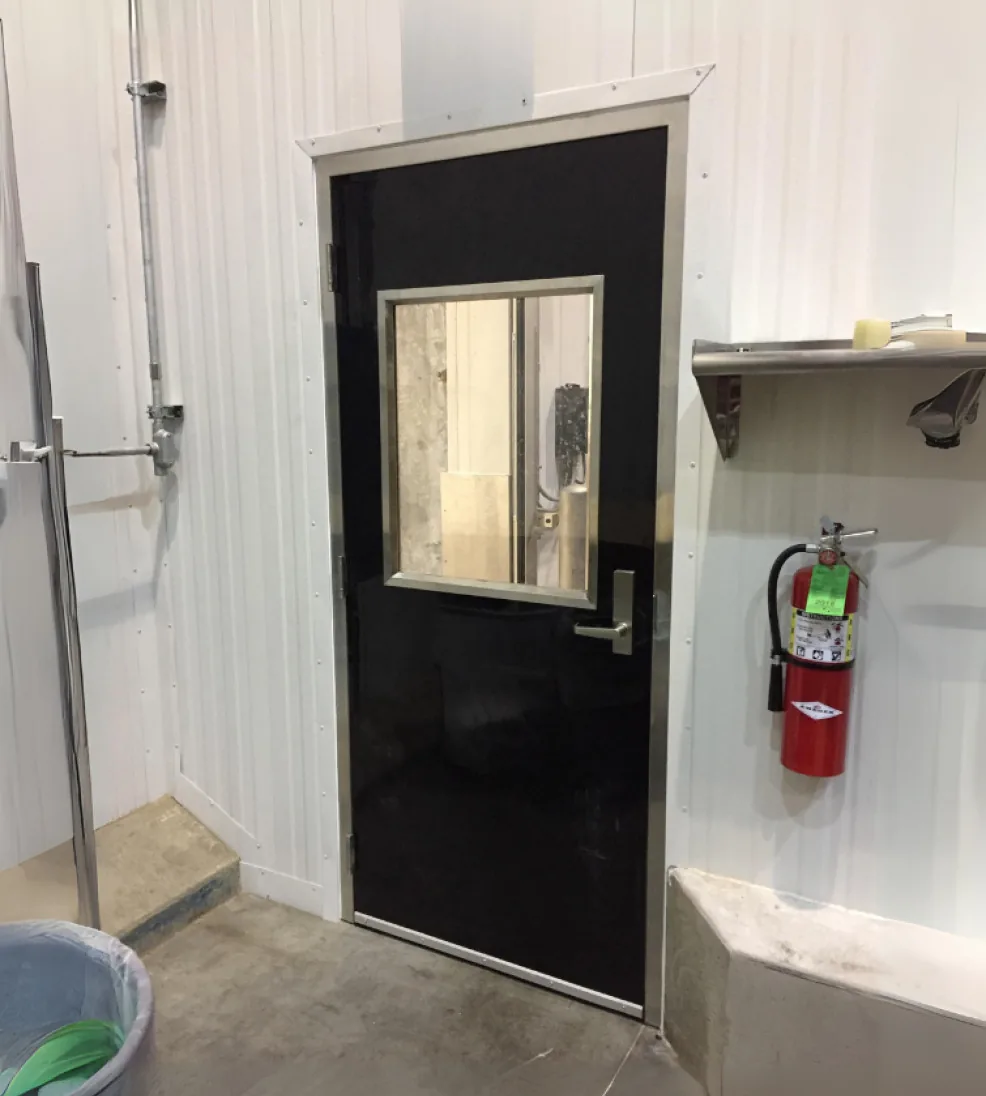

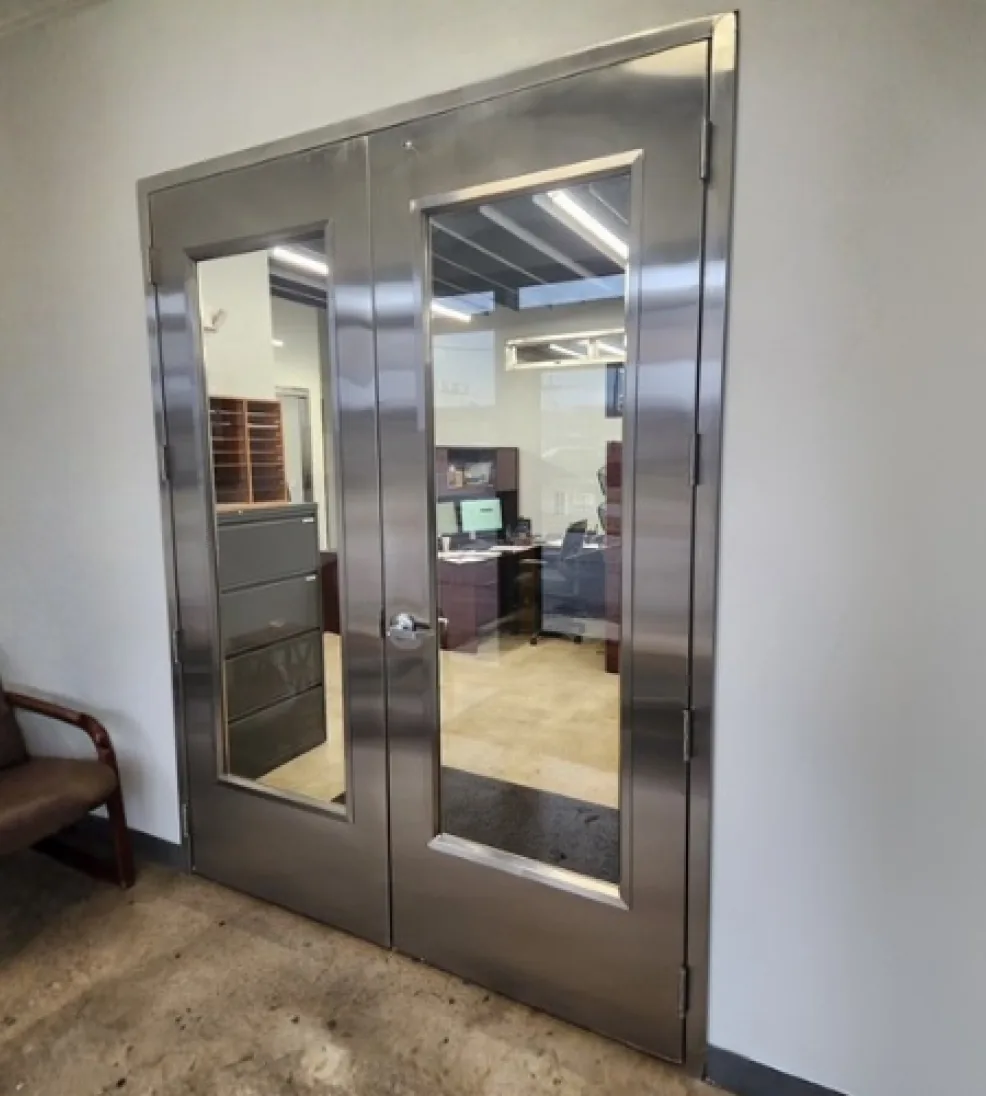

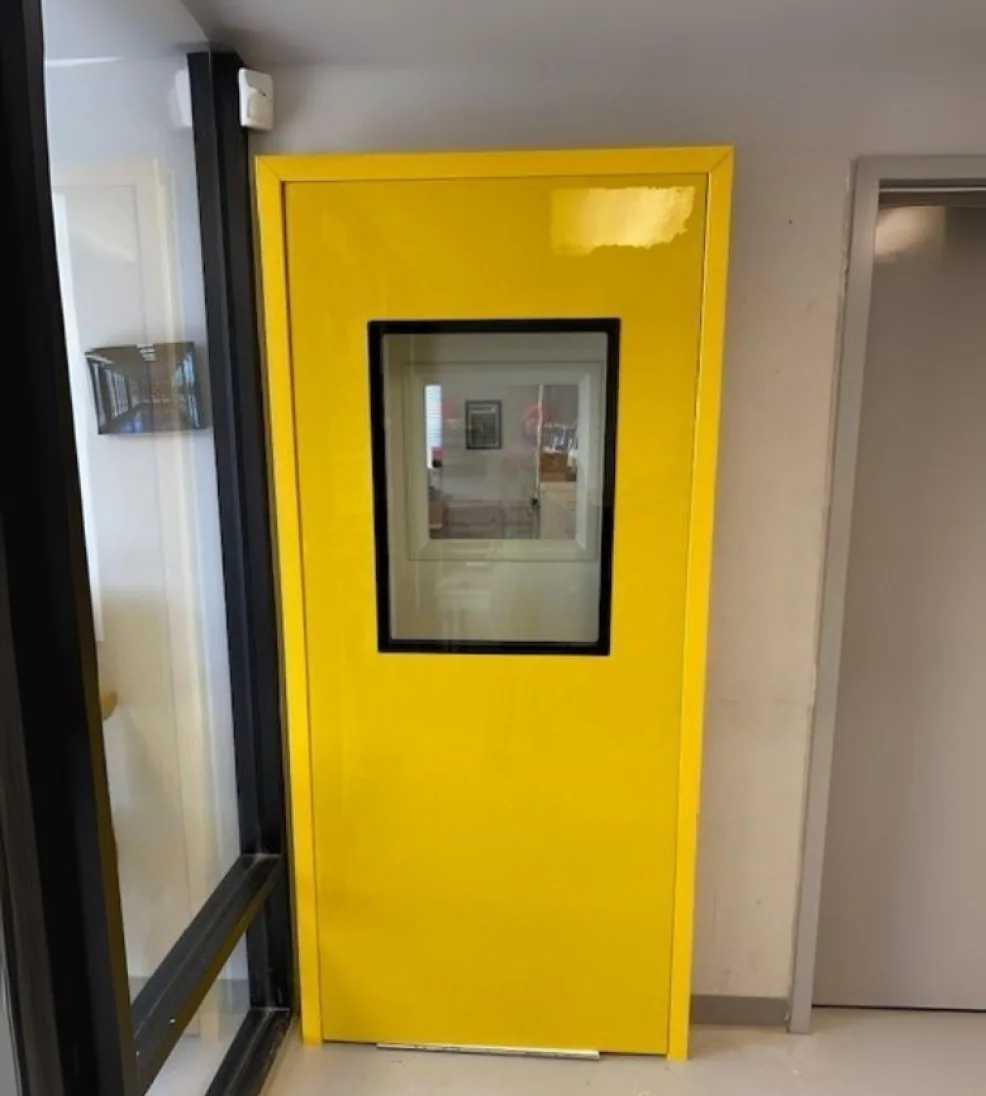

More photographs
Jamison literature
We send Jamison’s current sheet with the quote, so you are never working from an old revision. Send it back with your drawings and we will check the door against the opening.
- Data sheetJamison Product Datasheet - Jamocor Swing DoorsPDF
Product data and images: Jamison Door Company. Values as published by Jamison on its product pages; the current Jamison data sheet is the reference, and D.W. Ross supplies it with the quote. Read on 2026-10-14 from Jamison’s public product page for the Jamocor® Swing Fiberglass Doors.
