Jamison · Fiberglass and stainless personnel doors

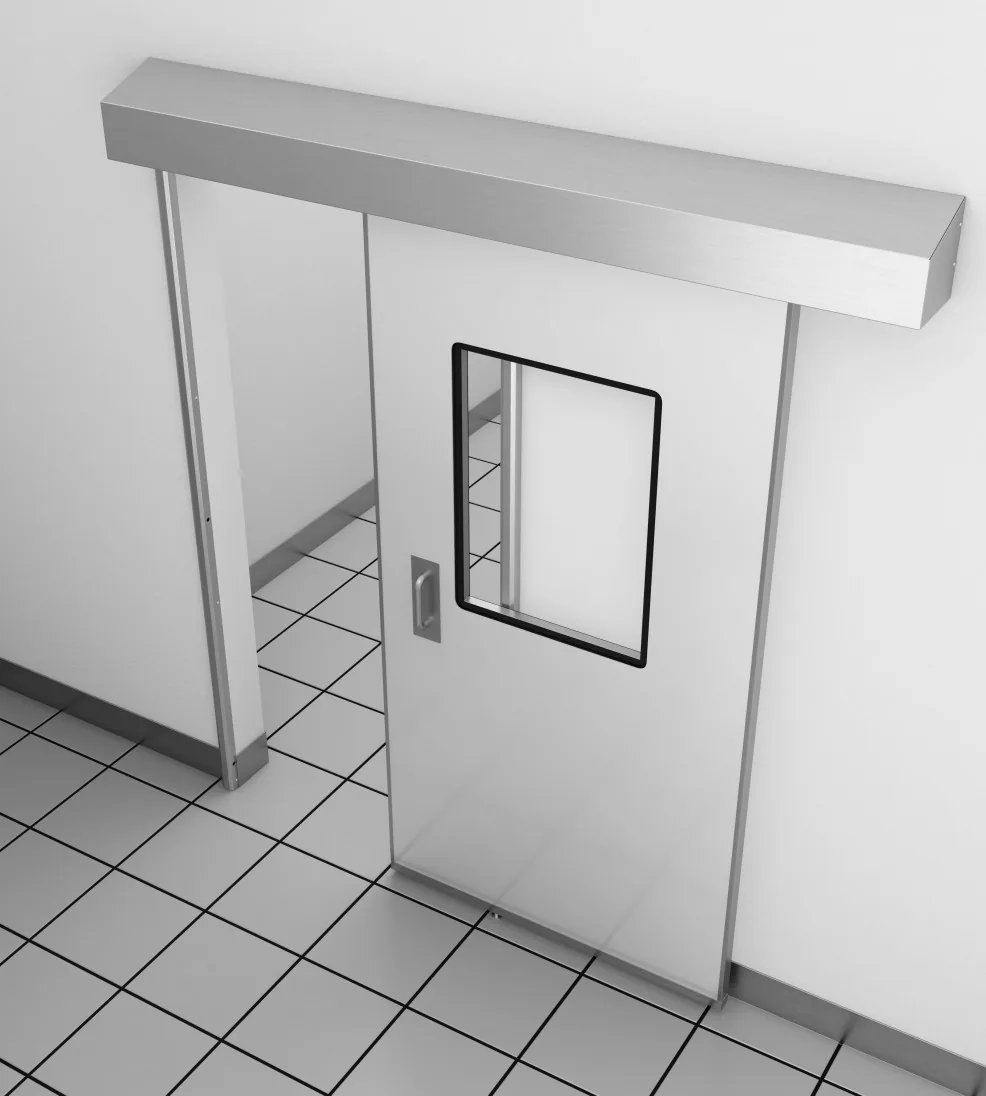

Jamocor Fiberglass Sliding Door
The sliding version of the Jamocor: a 1 3/4 in. molded fiberglass panel, single or bi-parting, manual or power operated, for wet, high-traffic rooms.
D.W. Ross supplies Jamison cooler, freezer and clean-room doors, sized to the opening before anything is ordered. It can install the door it supplies or deliver it material-only for your contractor.
Specifications
As published by Jamison for the Jamocor® Automatic Sliding Doors.
Jamison Jamocor Fiberglass Sliding Door
Send the opening size and the temperature on each side. We confirm the door, its rating and its options.
Request a quote →- Manufacturer
- Jamison Door Company
- Catalog group
- Fiberglass and stainless personnel doors
- Data read on
- 2026-10-14
- Door type
- Sliding
- Application
- Wash-down, Food processing, Corrosive areas
- Jamison line
- Jamocor (Jamotuf fiberglass and stainless doors)
- Maximum leaf weight
- 440 lbs
- Maximum opening (width and height in clear)
- 18/48" WIC, 18/96" HIC (Single); 36/96" WIC, 18/96" HIC (Bi-parting); Custom sizes available
- Working temperature
- 5° to 122° F
- Opening speed (per second)
- 31" (Single) | 62" (Bi-parting)
- Closing speed (per second)
- 23" (Single) | 46" (Bi-Parting)
- Operation
- Manual or power
- Duty cycle
- Continuous 100%
- Opening cycles
- 2,000,000 cycles (4,000/day)
- Panel construction
- 1 3/4" reinforced panel filled with urethane closed-cell insulated foam core that is CFC- and HCFC-free.
- Finish
- Molded 25 mil gloss gelcoat surface
- Frame construction
- Mitered and reinforced for strength and accurate installation.
- Availability
- Confirmed by D.W. Ross in the quote for your opening.
How Jamison builds it
- Solid 3/8 in. molded edge and a 25-mil gloss gelcoat.
- Closed-cell, CFC- and HCFC-free core; optional polypropylene honeycomb core.
- Solid fiberglass vertical stiffeners.
- Single or bi-parting, manual or power operated, with vision panels.
More photographs
Jamison literature
We send Jamison’s current sheet with the quote, so you are never working from an old revision. Send it back with your drawings and we will check the door against the opening.
- Data sheetJamison Product Datasheet - Jamocor Sliding DoorsPDF
Product data and images: Jamison Door Company. Values as published by Jamison on its product pages; the current Jamison data sheet is the reference, and D.W. Ross supplies it with the quote. Read on 2026-10-14 from Jamison’s public product page for the Jamocor® Automatic Sliding Doors.
Tell us about the opening.
The opening size, the temperature on each side, the traffic and how the room is cleaned. We confirm the door, its rating and its options, and quote it.
