Jamoclean Cleanroom Sliding Door

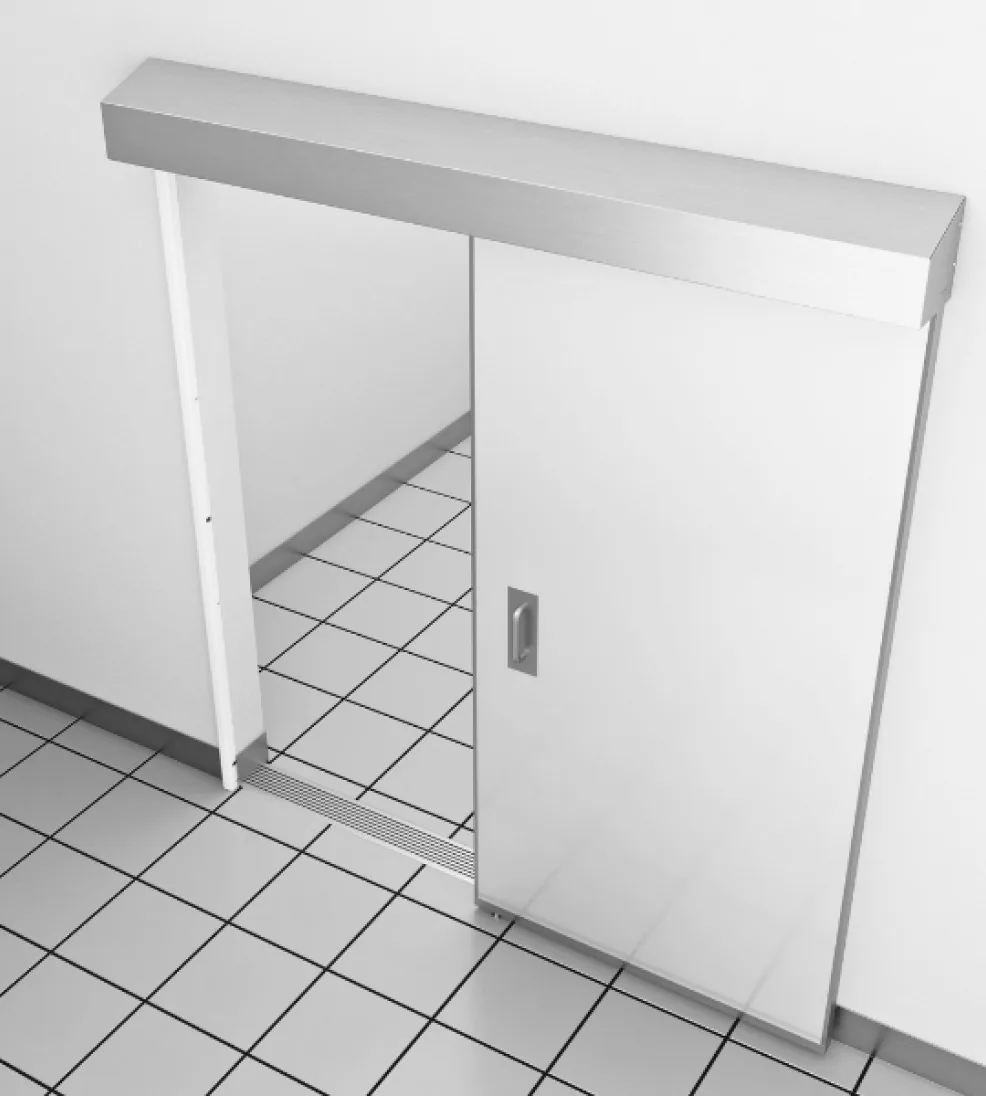

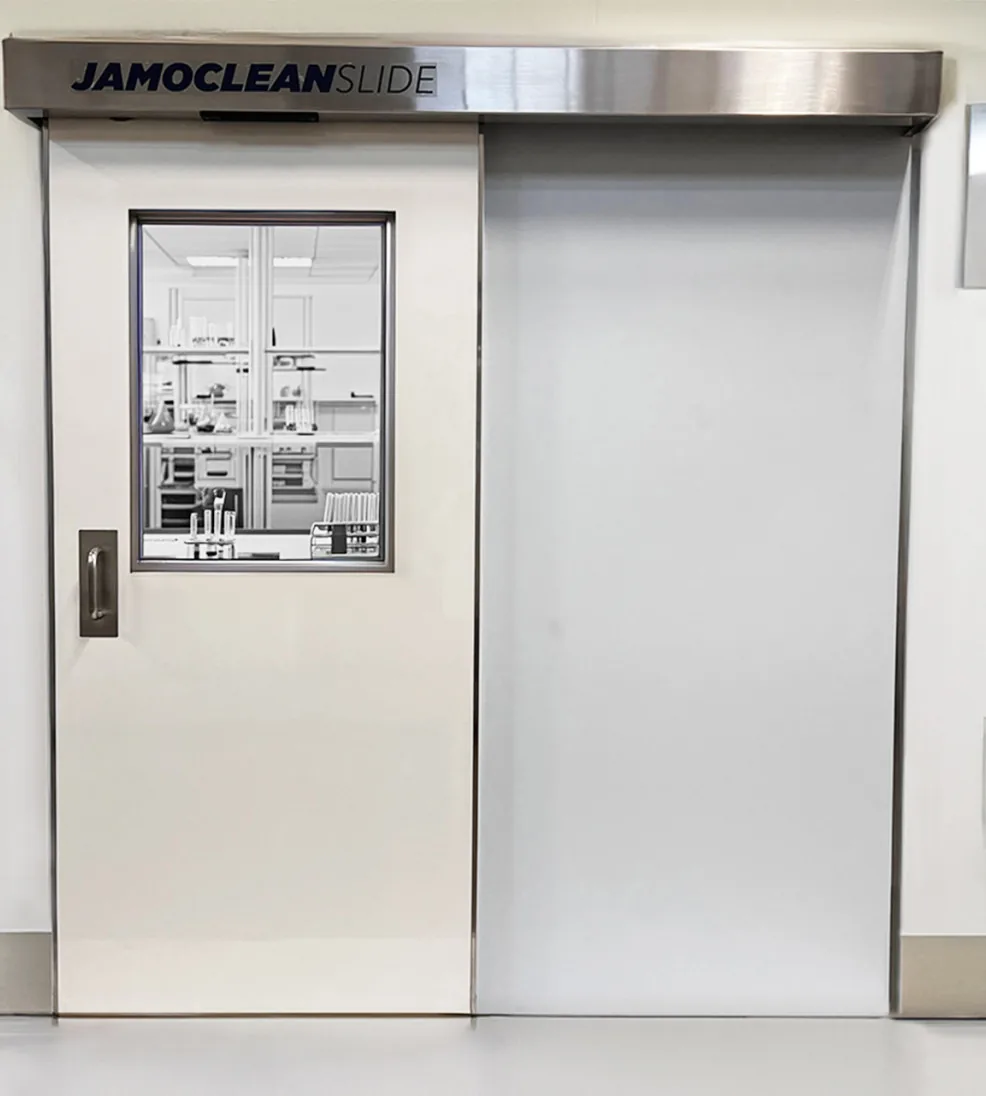

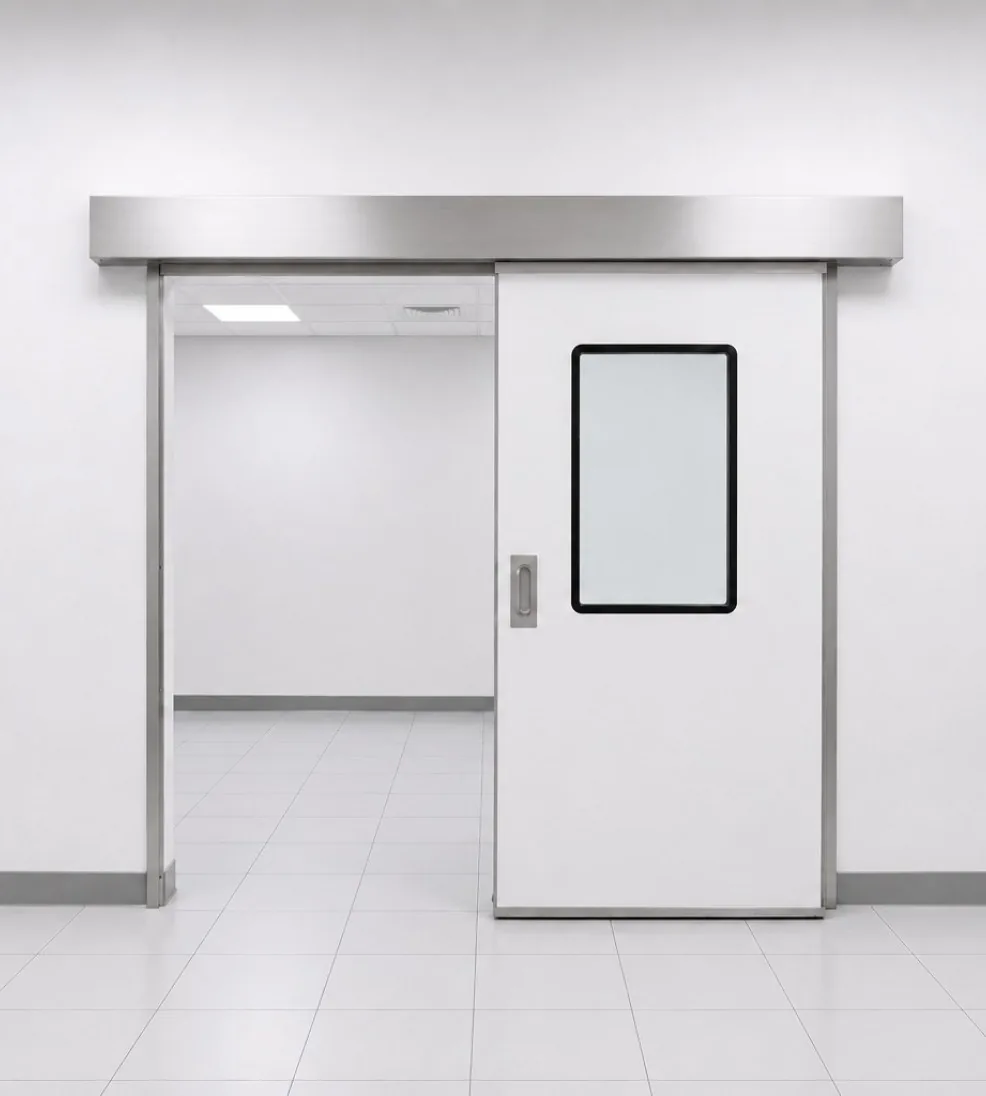

The sliding version of the Jamoclean: a 1 3/4 in. molded fiberglass panel, single-leaf or bi-parting, manual or powered, for cleanrooms that hold pressure between rooms.
D.W. Ross supplies Jamison cooler, freezer and clean-room doors, sized to the opening before anything is ordered. It can install the door it supplies or deliver it material-only for your contractor.
Specifications
As published by Jamison for the Jamoclean® Cleanroom Sliding Doors.
Jamison Jamoclean Cleanroom Sliding Door
Send the opening size and the temperature on each side. We confirm the door, its rating and its options.
Request a quote →- Manufacturer
- Jamison Door Company
- Catalog group
- Clean-room doors
- Data read on
- 2026-10-14
- Door type
- Sliding
- Application
- Clean room, Laboratory
- Jamison line
- Jamoclean (Jamotuf fiberglass and stainless doors)
- Maximum leaf weight
- 440 lbs
- Maximum opening
- 18/48" W X 18/96" H (Single); 36/96" W X 18/96" H (Bi-parting)
- Opening speed (per second)
- 31" (Single) | 62" (Bi-parting)
- Closing speed (per second)
- 23" (Single) | 46" (Bi-Parting)
- Duty cycle
- Continuous 100%
- Operation
- Manual or power
- Motor
- 24 V DC brushless motor with encoder
- Panel construction
- 1 3/4" reinforced panel filled with urethane closed-cell insulated foam core that is CFC- and HCFC-free.
- Finish
- Molded 25 mil gloss gelcoat surface
- Frame construction
- Mitered and reinforced for strength and accurate installation.
- Availability
- Confirmed by D.W. Ross in the quote for your opening.
How Jamison builds it
- 1 3/4 in. panel with a closed-cell, CFC- and HCFC-free core; optional polypropylene honeycomb core.
- Stainless steel edge capping.
- Single-leaf or bi-parting; flush or sloped vision panels.
- Color pigments molded into the fiberglass.
More photographs
Jamison literature
We send Jamison’s current sheet with the quote, so you are never working from an old revision. Send it back with your drawings and we will check the door against the opening.
- Data sheetJamison product datasheet: Jamoclean sliding cleanroom doorsPDF
Product data and images: Jamison Door Company. Values as published by Jamison on its product pages; the current Jamison data sheet is the reference, and D.W. Ross supplies it with the quote. Read on 2026-10-14 from Jamison’s public product page for the Jamoclean® Cleanroom Sliding Doors.
