Kingspan · GreenGuard LG XPS insulation board

GreenGuard GG60-LG

60 psi XPS, the grade Kingspan names for low-temperature freezer floors and cold storage facility floors, as well as ice rinks and parking decks.

D.W. Ross supplies GreenGuard board for freezer and cold storage floors, and the grade is chosen with you against the slab, the load and the racking.

← Freezer floor insulation

Specifications

As published by Kingspan. Used for: Freezer and cooler floors, High-load floors.

Compressive strength
60 psi minimum
ASTM C578
Type VII
Material
Closed-cell extruded polystyrene (XPS), produced with a blowing agent blend with a GWP of less than 50.
Thickness
1 1/2, 2 or 3 in.
Width
2 ft or 4 ft.
Length
8 ft.
Edge
Square or channeled (drainage channel board).
R-value
R-5.0 per inch at 75°F mean temperature, ASTM C518 (based on 2 in. aged product).
Thermal conductivity
k-value 0.2 at 75°F mean temperature, ASTM C518.
Water absorption
0.3% by volume maximum, ASTM C272.
Water vapor permeance
1.1 perm maximum, ASTM E96 desiccant method.
Density
2.2 lb/ft³ minimum, ASTM C303.
Service temperature
165°F maximum.
Surface burning
Flame spread 25 (Class A), smoke developed 140, ASTM E84 / UL 723.
Listings
Intertek CCRR 1021; UL R11183; Miami-Dade County, FL; CA BEARHFTI Lic. No. T 1506.
Availability
Confirmed by D.W. Ross in the quote for your project.

Request a quote →

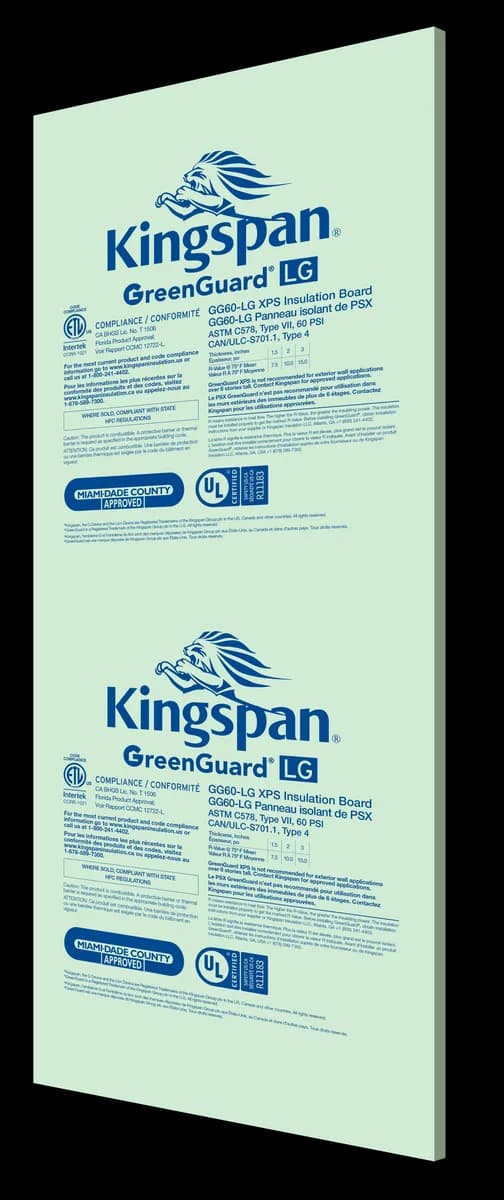

A GreenGuard GG60-LG XPS insulation board standing on end, pale green with Kingspan GreenGuard LG printing
GG60-LG board. Image: Kingspan.

Before you specify it

  • From the data sheet: the board is combustible, and a protective or thermal barrier is required as specified in the building code. Kingspan does not recommend GreenGuard XPS for exterior walls over 6 stories, and asks that board left exposed outdoors be covered within 60 days against UV.

Kingspan documents

These open on Kingspan’s site, so you always get the current revision. Send the data sheet and span table with your drawings and we will check the panel against the room.

GreenGuard GG40-LGGreenGuard GG100-LGGreenGuard GG25-LGThe whole Kingspan catalog

Product data and images: Kingspan Insulated Panels and Kingspan Insulation. Values as published by Kingspan; the data sheet linked on each page is the current reference. Read on 2026-10-12 from Kingspan product page: GreenGuard GG60-LG and GreenGuard GG60-LG Data Sheet (Version 3.1, 11/2023).
