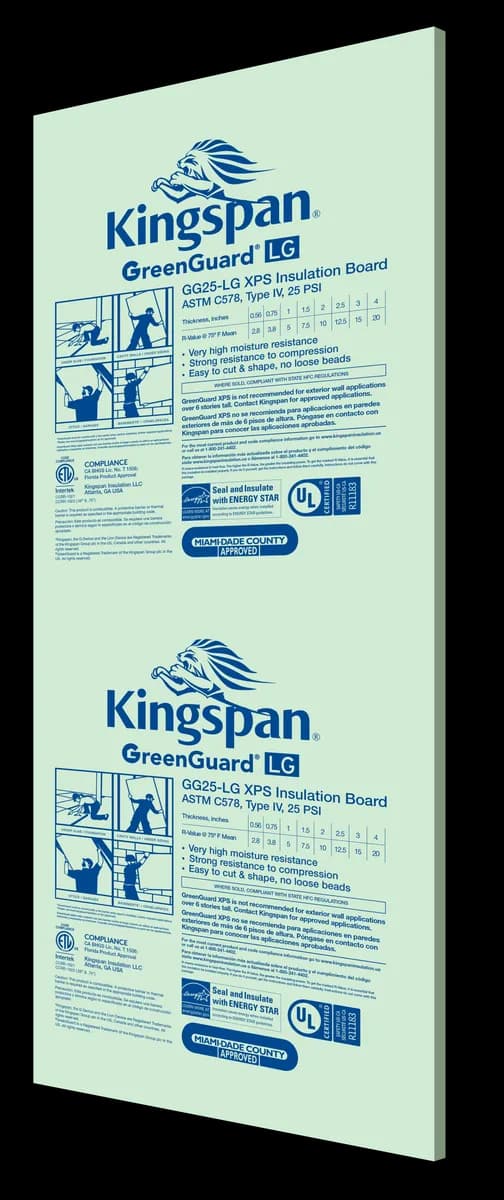

GreenGuard GG25-LG
The general-purpose grade: 25 psi XPS for below-slab, cavity wall and foundation work where loads are moderate.
D.W. Ross supplies GreenGuard board for freezer and cold storage floors, and the grade is chosen with you against the slab, the load and the racking.
Specifications
As published by Kingspan. Used for: Below-slab insulation, Foundations.
- Compressive strength
- 25 psi minimum
- ASTM C578
- Type IV
- Material
- Closed-cell extruded polystyrene (XPS), produced with a blowing agent blend with a GWP of less than 50.
- Thickness
- 1/2, 3/4, 1, 1 1/2, 2, 2 1/2, 3 or 4 in.
- Width
- 16 in., 2 ft or 4 ft.
- Length
- 8 ft.
- Edge
- Square or shiplap. Kingspan also lists a score board.
- R-value
- R-5.0 per inch at 75°F mean temperature, ASTM C518 (based on 1 in. aged product).
- Thermal conductivity
- k-value 0.2 at 75°F mean temperature, ASTM C518.
- Water absorption
- 0.12% by volume, ASTM C272.
- Water vapor permeance
- 1.5 perm maximum, ASTM E96 desiccant method (for 1 in. board).
- Density
- 1.5 lb/ft³ minimum, ASTM C303.
- Service temperature
- 165°F maximum.
- Surface burning
- Flame spread 25 (Class A), smoke developed 140, ASTM E84 / UL 723.
- Listings
- Intertek CCRR-1021; CCRR-1022 (.56 and .75 in.); UL R11183; Miami-Dade County, FL (1, 1.5, 2, 3 and 4 in.); CA BEARHFTI Lic. No. T 1506.
- Availability
- Confirmed by D.W. Ross in the quote for your project.
Before you specify it
- From the data sheet: the board is combustible, and a protective or thermal barrier is required as specified in the building code. Kingspan does not recommend GreenGuard XPS for exterior walls over 6 stories, and asks that board left exposed outdoors be covered within 60 days against UV.
- From D.W. Ross: Freezer floors take non-scored board. The score board Kingspan lists is made to snap for foundation work, and it is not what goes under a freezer slab.
Kingspan documents
These open on Kingspan’s site, so you always get the current revision. Send the data sheet and span table with your drawings and we will check the panel against the room.
- Data sheetGreenGuard GG25-LG Data Sheet (PDF) ↗
- Line sheetGreenGuard LG XPS Boards Line Sheet (PDF) ↗
Product data and images: Kingspan Insulated Panels and Kingspan Insulation. Values as published by Kingspan; the data sheet linked on each page is the current reference. Read on 2026-10-12 from Kingspan product page: GreenGuard GG25-LG and GreenGuard GG25-LG Data Sheet (Version 3, 03/2026).
