Jamoglide Horizontal Sliding Cooler Door
The cooler version of the Jamoglide horizontal slider: steel-clad extruded aluminum over 4 in. of polyurethane, single or bi-parting, with wicket door options.
D.W. Ross supplies Jamison cooler, freezer and clean-room doors, sized to the opening before anything is ordered. It can install the door it supplies or deliver it material-only for your contractor.
Specifications
As published by Jamison for the Jamoglide™ Horizontal Sliding Insulated Cold Room Doors.
Jamison Jamoglide Horizontal Sliding Cooler Door
Send the opening size and the temperature on each side. We confirm the door, its rating and its options.
Request a quote →- Manufacturer
- Jamison Door Company
- Catalog group
- Sliding and vertical-lift cooler and freezer doors
- Data read on
- 2026-10-14
- Door type
- Horizontal sliding
- Application
- Cooler
- Jamison line
- Jamoglide (Jamodoor industrial doors)
- Formerly sold as
- Mark IV
- Maximum size
- W 16' x H 20'
- Working temperature
- -40° to 165° F
- Opening speed
- Up to 16"/sec
- Frame
- Aluminum or wood metal clad
- Jambs and trim
- Metal clad (wood, PVC), aluminum
- Panel
- FIP HFO polyurethane aluminum
- Vision window
- 12" x 14" standard tempered glass
- Track
- Aluminum or SST profile
- Motor
- ¼ HP or ½ HP @ 1700 RPM
- Safety
- Pneumatic reversing edge
- NEMA enclosure options
- NEMA 1, 4, or 4X
- UL standards
- UL 471 & UL 508
- Availability
- Confirmed by D.W. Ross in the quote for your opening.
How Jamison builds it
- Four inches of non-CFC polyurethane; Jamison states R-28 at 40° F.
- Frame with polystyrene inserts.
- Single or bi-parting, manual or automated; wicket (pass) door options.
- Diamond-Trac roller system and perimeter sealing.

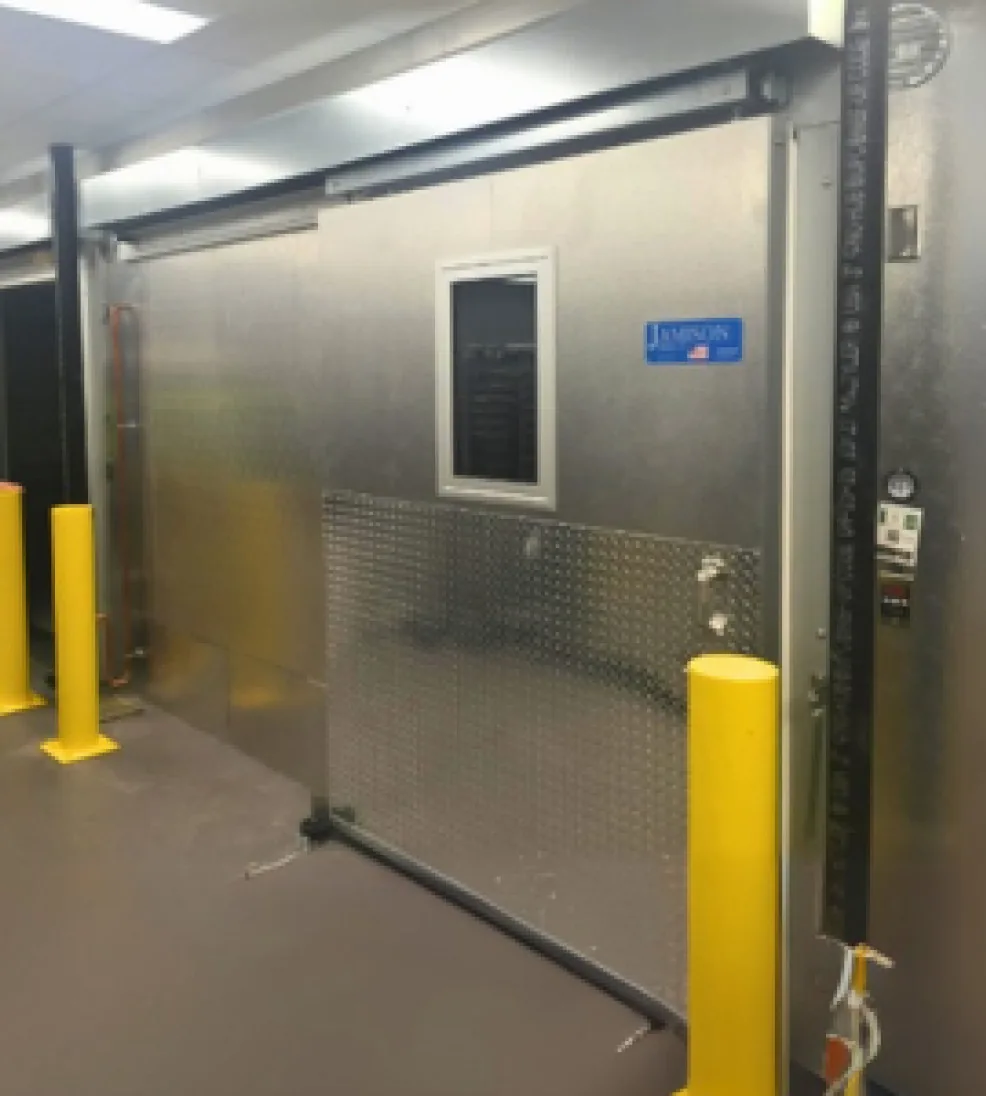

More photographs
Before you specify it
- Jamison notes that where the temperature difference across the door is greater than 90° F, the door is reviewed with Jamison before it is ordered. D.W. Ross raises that with Jamison for you.
Jamison literature
We send Jamison’s current sheet with the quote, so you are never working from an old revision. Send it back with your drawings and we will check the door against the opening.
- Data sheetJamison Product Datasheet - Jamoglide Horizontal Sliding DoorsPDF
Vertical lift
Jamoglide Vertical Sliding Cooler Door
Horizontal sliding
Jamofood Stainless Steel Sliding Cooler Door
Product data and images: Jamison Door Company. Values as published by Jamison on its product pages; the current Jamison data sheet is the reference, and D.W. Ross supplies it with the quote. Read on 2026-10-14 from Jamison’s public product page for the Jamoglide™ Horizontal Sliding Insulated Cold Room Doors.
