Horizontal sliding
Jamison · Sliding and vertical-lift cooler and freezer doors
Jamoglide Horizontal Sliding Freezer Door

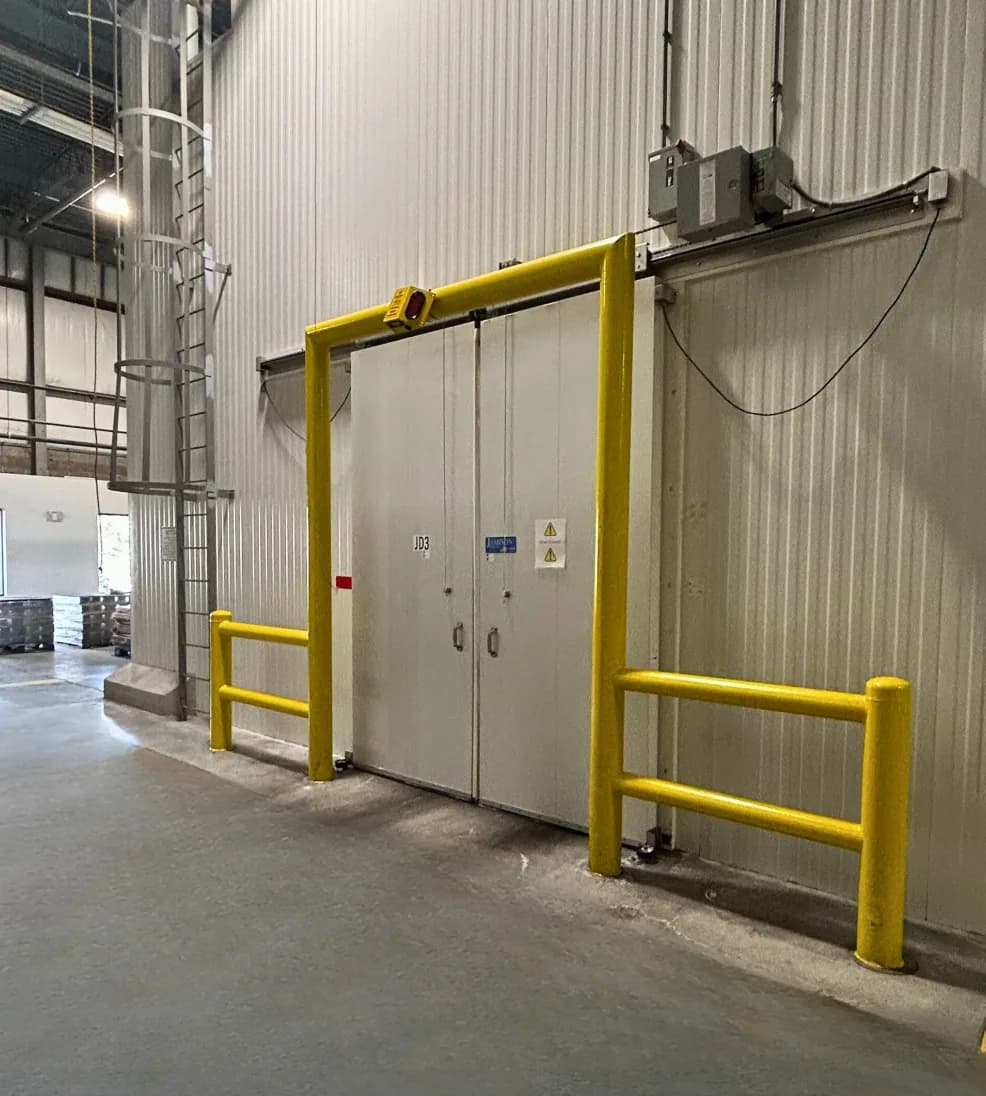

Jamison's horizontal sliding freezer door, formerly the Mark IV: single or double, manual or power operated, up to 16 ft. wide and 20 ft. high, on the Diamond-Trac roller system.
D.W. Ross supplies Jamison cooler, freezer and clean-room doors, sized to the opening before anything is ordered. It can install the door it supplies or deliver it material-only for your contractor.
Specifications
As published by Jamison for the Jamoglide™ Horizontal Sliding Freezer Doors.
Jamison Jamoglide Horizontal Sliding Freezer Door
Send the opening size and the temperature on each side. We confirm the door, its rating and its options.
Request a quote →- Manufacturer
- Jamison Door Company
- Catalog group
- Sliding and vertical-lift cooler and freezer doors
- Data read on
- 2026-10-14
- Door type
- Horizontal sliding
- Application
- Freezer
- Jamison line
- Jamoglide (Jamodoor industrial doors)
- Formerly sold as
- Mark IV
- Maximum size
- W 16' x H 20'
- Working temperature
- -40° to 165° F
- Opening speed
- Up to 16"/sec
- Frame
- Aluminum or wood metal clad
- Jambs and trim
- Metal clad (wood, PVC), aluminum
- Panel
- FIP HFO polyurethane aluminum
- Vision window
- 12" x 14" standard tempered glass
- Track
- Aluminum or SST profile
- Motor
- ¼ HP or ½ HP @ 1700 RPM
- Safety
- Pneumatic reversing edge
- NEMA enclosure options
- NEMA 1, 4, or 4X
- UL standards
- UL 471 & UL 508
- Availability
- Confirmed by D.W. Ross in the quote for your opening.
How Jamison builds it
- Diamond-Trac roller system: a "down-and-in" motion that seals the panel against the wall.
- Steel construction with aircraft-grade aluminum in the frame.
- Frostop heats both the door and the frame to stop gasket freezing.
- Single or double doors, manual or power operated.
More photographs
Before you specify it
- Jamison notes that where the temperature difference across the door is greater than 90° F, the door is reviewed with Jamison before it is ordered. D.W. Ross raises that with Jamison for you.
Jamison literature
We send Jamison’s current sheet with the quote, so you are never working from an old revision. Send it back with your drawings and we will check the door against the opening.
- Data sheetJamison Product Datasheet - Jamoglide Horizontal Sliding DoorsPDF
Vertical lift
Jamoglide Vertical Sliding Freezer Door
Horizontal sliding
Jamofood Stainless Steel Sliding Freezer Door
Product data and images: Jamison Door Company. Values as published by Jamison on its product pages; the current Jamison data sheet is the reference, and D.W. Ross supplies it with the quote. Read on 2026-10-14 from Jamison’s public product page for the Jamoglide™ Horizontal Sliding Freezer Doors.
