Horizontal sliding
Jamison · Sliding and vertical-lift cooler and freezer doors
Jamofood Stainless Steel Sliding Cooler Door
A welded stainless steel sliding door for food-plant cold rooms, single or bi-parting, with optional track ports and meat rail cutouts.
D.W. Ross supplies Jamison cooler, freezer and clean-room doors, sized to the opening before anything is ordered. It can install the door it supplies or deliver it material-only for your contractor.
Specifications
As published by Jamison for the Jamofood™ Stainless Steel Sliding Cold Room Door.
Jamison Jamofood Stainless Steel Sliding Cooler Door
Send the opening size and the temperature on each side. We confirm the door, its rating and its options.
Request a quote →- Manufacturer
- Jamison Door Company
- Catalog group
- Sliding and vertical-lift cooler and freezer doors
- Data read on
- 2026-10-14
- Door type
- Horizontal sliding
- Application
- Cooler, Food processing, Wash-down
- Jamison line
- Jamofood (Jamodoor industrial doors)
- Formerly sold as
- Mark IV Food Pro
- Maximum size
- W 16' x H 20'
- Opening speed
- Up to 80"/sec
- Working temperature
- -40° to 165° F
- Track
- Aluminum or SST profile with UHMW rail
- Safety
- Pneumatic reversing edge
- NEMA enclosure options
- NEMA 1, 4, or 4X
- UL standards
- UL 471 & UL 508
- Availability
- Confirmed by D.W. Ross in the quote for your opening.
How Jamison builds it
- Precision-welded stainless steel over an insulated core, with Class 1 fire-rated urethane insulation.
- Single or bi-parting; optional track ports or meat rail cutouts.
- Diamond-Trac roller system.
- Powertron operator on automated doors; Jamison gives 80 in. per second opening.

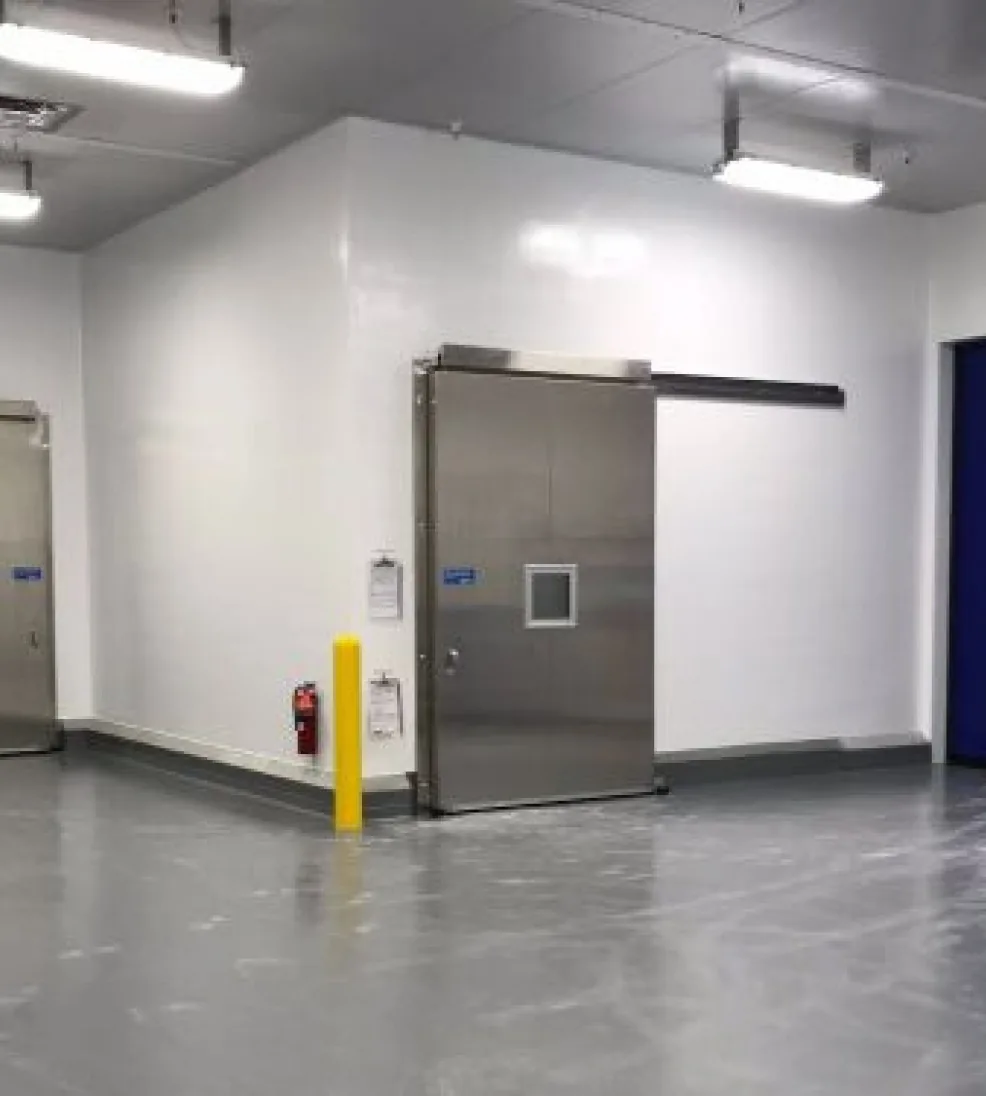

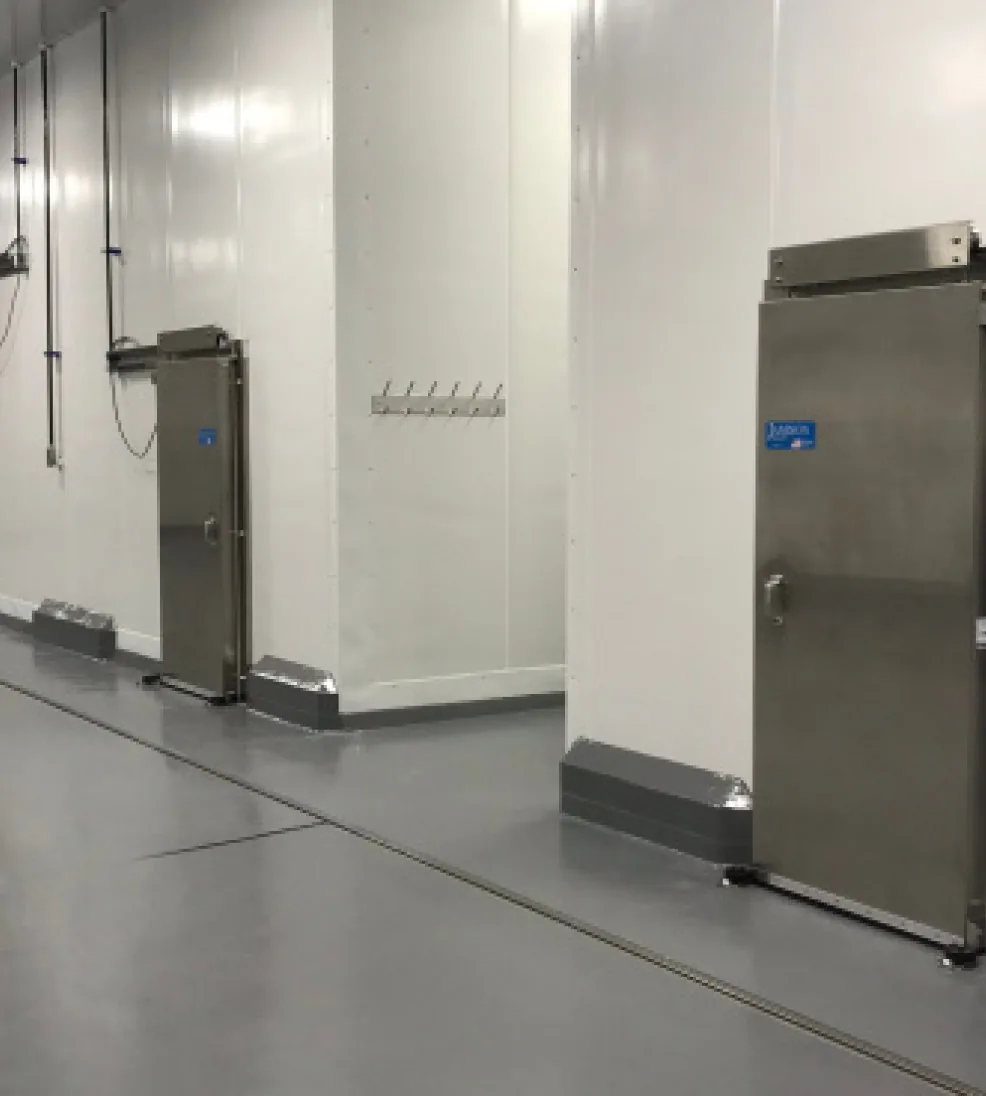

More photographs
Before you specify it
- Jamison notes that where the temperature difference across the door is greater than 90° F, the door is reviewed with Jamison before it is ordered. D.W. Ross raises that with Jamison for you.
- Jamison's page prints two different insulation lines and an incomplete motor line for this door, so they are not shown. The data sheet settles them, in the quote.
- The specification table gives -40° to 165° F; the page text describes the cooler door handling 35° F to 100° F. The rating for your room is confirmed in the quote.
Jamison literature
We send Jamison’s current sheet with the quote, so you are never working from an old revision. Send it back with your drawings and we will check the door against the opening.
- Data sheetJamison Product Datasheet - Jamofood Sliding DoorsPDF
Horizontal sliding
Jamoglide Horizontal Sliding Cooler Door
High-speed roll-up
DynamicRoll Stainless High-Speed Roll-Up Door
Product data and images: Jamison Door Company. Values as published by Jamison on its product pages; the current Jamison data sheet is the reference, and D.W. Ross supplies it with the quote. Read on 2026-10-14 from Jamison’s public product page for the Jamofood™ Stainless Steel Sliding Cold Room Door.
Tell us about the opening.
The opening size, the temperature on each side, the traffic and how the room is cleaned. We confirm the door, its rating and its options, and quote it.
