High-speed roll-up
Jamison · High-speed roll-up doors
DynamicRoll Stainless High-Speed Roll-Up Door

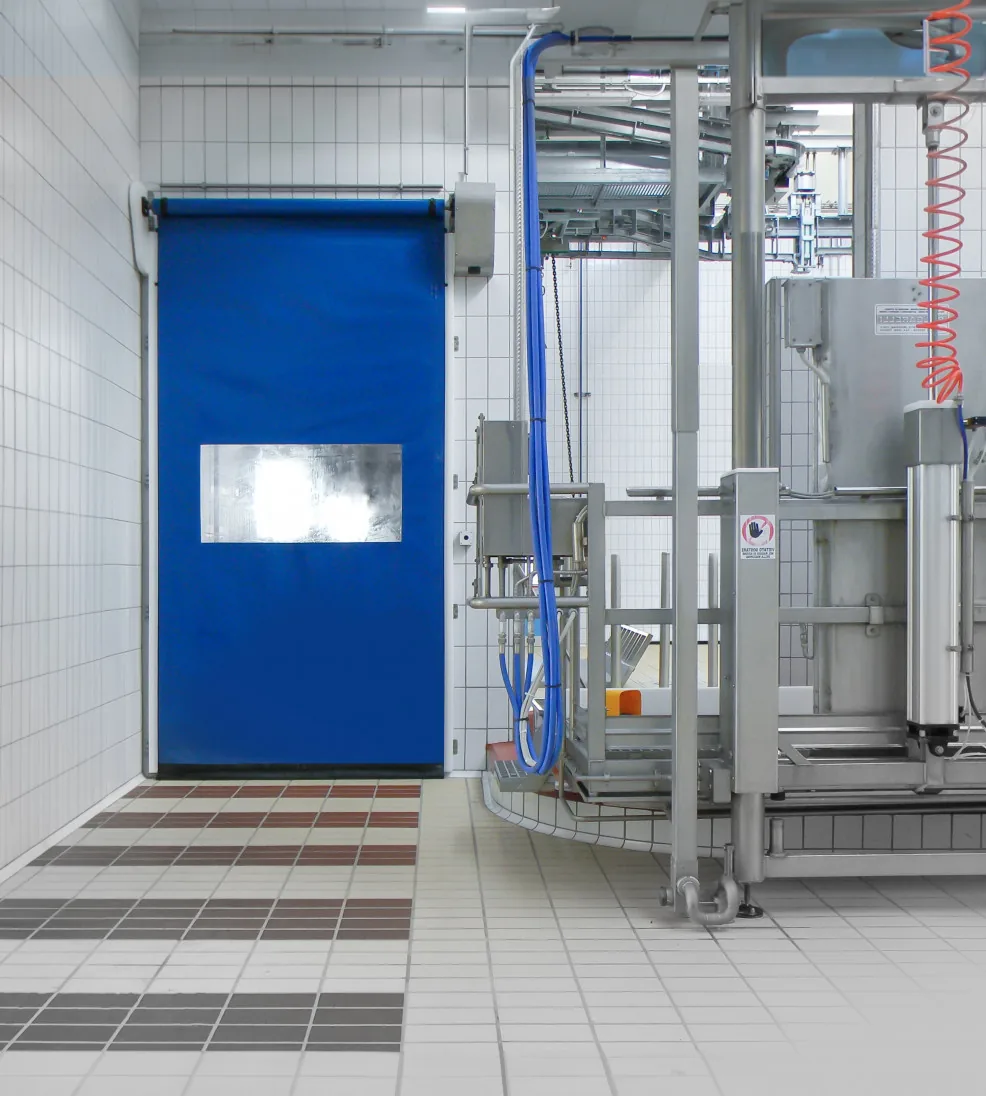

A high-speed roll-up door for food production, with stainless steel drum and motor covers, sloped covers and a self-reinserting curtain, up to 100 in. per second.
D.W. Ross supplies Jamison cooler, freezer and clean-room doors, sized to the opening before anything is ordered. It can install the door it supplies or deliver it material-only for your contractor.
Specifications
As published by Jamison for the DynamicRoll® Stainless Roll Up Door.
Jamison DynamicRoll Stainless High-Speed Roll-Up Door
Send the opening size and the temperature on each side. We confirm the door, its rating and its options.
Request a quote →- Manufacturer
- Jamison Door Company
- Catalog group
- High-speed roll-up doors
- Data read on
- 2026-10-14
- Door type
- High-speed roll-up
- Application
- Food processing, Wash-down
- Jamison line
- DynamicRoll (DynamicRoll high-speed doors)
- Maximum size
- W 21' 4" x H 21' 4"
- Opening speed
- Up to 100 in/sec
- Wind resistance
- 9' 10" x 9' 10" Class 3, 16' 5" x 16' 5" Class 2
- Frame and motor hood
- Standard: Stainless Steel 304; Optional: Stainless Steel 316
- Cycle test
- 1,000,000
- Control panel
- Standard: NEMA 4X Composite box; Optional: NEMA 4X Stainless steel box
- Safety devices
- Standard: Photocells, unroll sensor; Optional: WiFi safety edge
- Availability
- Confirmed by D.W. Ross in the quote for your opening.
How Jamison builds it
- Stainless steel drum and motor covers as standard; sloped covers shed water.
- Self-repairing curtain guide in high-density polyethylene.
- Flexible soft bottom edge.
- Optional insulated curtain to reduce condensation.
More photographs
Before you specify it
- Jamison notes that dimensions larger than the maximum require its approval.
- Curtain fabric options are confirmed against the data sheet in the quote.
Jamison literature
We send Jamison’s current sheet with the quote, so you are never working from an old revision. Send it back with your drawings and we will check the door against the opening.
- BrochureDynamicRoll Stainless High Speed Roll Up Door brochurePDF
High-speed roll-up
DynamicRoll Dynadry Rapid Door for Wet Rooms
Horizontal sliding
Jamofood Stainless Steel Sliding Cooler Door
Product data and images: Jamison Door Company. Values as published by Jamison on its product pages; the current Jamison data sheet is the reference, and D.W. Ross supplies it with the quote. Read on 2026-10-14 from Jamison’s public product page for the DynamicRoll® Stainless Roll Up Door.
