Jamison · Swing cooler and freezer doors
Jamofoam I Swing Freezer Door
The freezer version of the Jamofoam I hinged door, in galvanized or stainless steel, built for cooler, freezer and blast freezer rooms, single-leaf or bi-parting.
D.W. Ross supplies Jamison cooler, freezer and clean-room doors, sized to the opening before anything is ordered. It can install the door it supplies or deliver it material-only for your contractor.
Specifications
As published by Jamison for the Jamofoam® I Swing Commercial Freezer Doors.
Jamison Jamofoam I Swing Freezer Door
Send the opening size and the temperature on each side. We confirm the door, its rating and its options.
Request a quote →- Manufacturer
- Jamison Door Company
- Catalog group
- Swing cooler and freezer doors
- Data read on
- 2026-10-14
- Door type
- Swing
- Application
- Freezer, Blast freezer
- Jamison line
- Jamofoam (Jamodoor industrial doors)
- Formerly sold as
- Plyfoam I
- Maximum size
- W 8' x H 14'
- Working temperature
- -60° to 165° F
- Frame
- Metal clad (wood)
- Jambs and trim
- Metal clad (wood) or aluminum
- Panel insulation
- FIP HFO PU aluminum structure 4" 32 @ 20° F or 6" R48 @ 20° F
- Vision window
- 12" x 14" standard tempered glass; 2-Layer Cooler; 3-Layer 4" Freezer; 5-Layer 6" Freezer; Heated or Unheated
- UL standards
- UL 471
- Differential pressure
- ±75PSF
- Availability
- Confirmed by D.W. Ross in the quote for your opening.
How Jamison builds it
- Cooler, freezer and blast freezer designs, single-leaf or bi-parting.
- Galvanized steel or stainless steel panels.

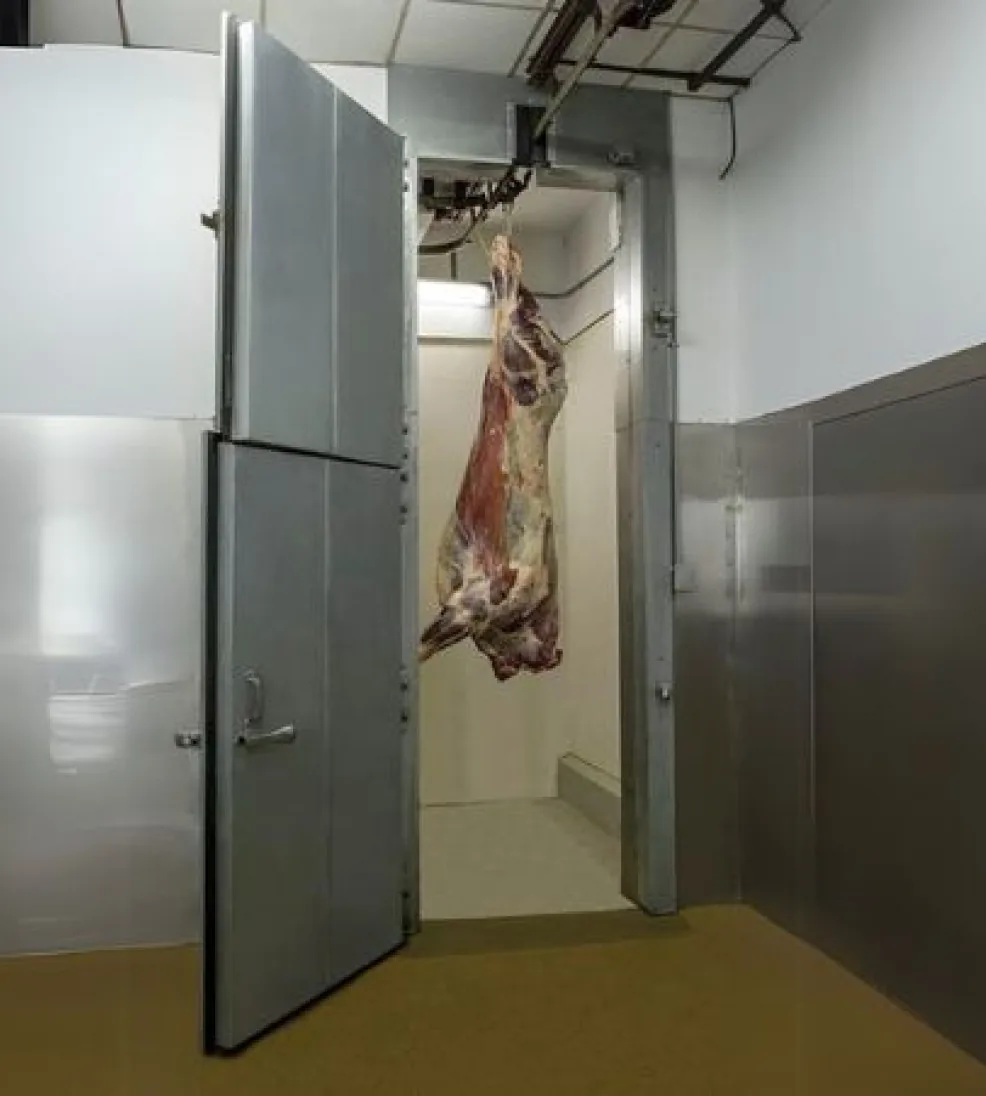

- Single, swing double and track-port options.
- Flush-floor frame and self-rising hinges.
- Optional safety release fastener for exit from inside the freezer.
More photographs
Before you specify it
- Jamison's specification table prints the panel insulation line under the heading "Operator Power Supply". It is shown here under what it describes. The data sheet is the reference.
- Jamison's page gives two temperature figures for this door: a working temperature of -60° to 165° F in its specification table, and "as low as -40°" in its summary. The rating for your room is confirmed in the quote.
Jamison literature
We send Jamison’s current sheet with the quote, so you are never working from an old revision. Send it back with your drawings and we will check the door against the opening.
- Data sheetJamison Product Datasheet - Jamofoam I Swing DoorsPDF
Product data and images: Jamison Door Company. Values as published by Jamison on its product pages; the current Jamison data sheet is the reference, and D.W. Ross supplies it with the quote. Read on 2026-10-14 from Jamison’s public product page for the Jamofoam® I Swing Commercial Freezer Doors.
Tell us about the opening.
The opening size, the temperature on each side, the traffic and how the room is cleaned. We confirm the door, its rating and its options, and quote it.
