Jamison · Swing cooler and freezer doors

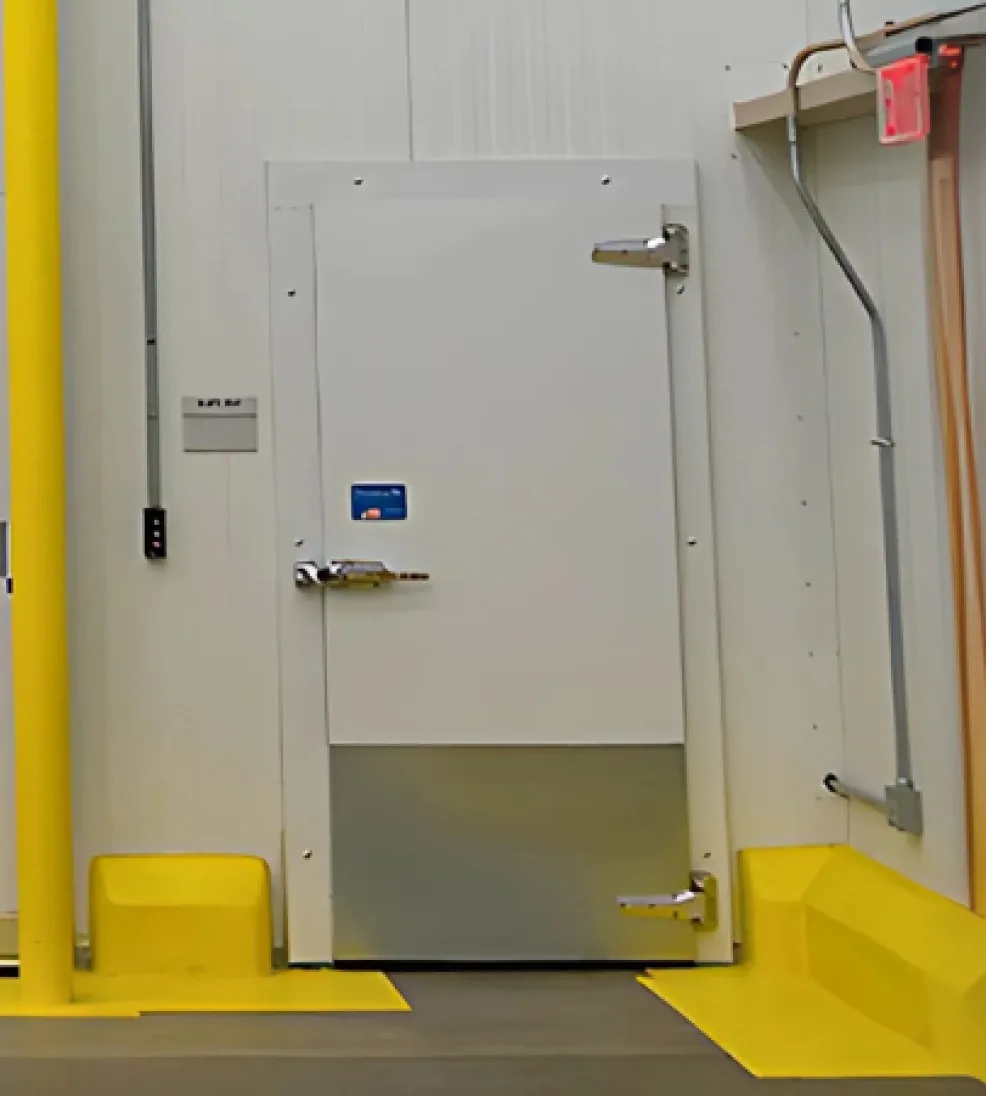

Jamofoam I Swing Cooler Door
A hinged cooler door with a solid polyurethane core, built single-leaf, bi-parting or with a track port, up to 8 ft. wide and 14 ft. high, with self-rising hinges.
D.W. Ross supplies Jamison cooler, freezer and clean-room doors, sized to the opening before anything is ordered. It can install the door it supplies or deliver it material-only for your contractor.
Specifications
As published by Jamison for the Jamofoam® I Swing Commercial Cooler Doors.
Jamison Jamofoam I Swing Cooler Door
Send the opening size and the temperature on each side. We confirm the door, its rating and its options.
Request a quote →- Manufacturer
- Jamison Door Company
- Catalog group
- Swing cooler and freezer doors
- Data read on
- 2026-10-14
- Door type
- Swing
- Application
- Cooler
- Jamison line
- Jamofoam (Jamodoor industrial doors)
- Formerly sold as
- Plyfoam I
- Maximum size
- W 8' x H 14'
- Working temperature
- -60° to 165° F
- Frame
- Metal clad (wood)
- Jambs and trim
- Metal clad (wood) or aluminum
- Panel insulation
- FIP HFO PU aluminum structure 4" 32 @ 20° F or 6" R48 @ 20° F
- Vision window
- 12" x 14" standard tempered glass; 2-Layer Cooler; 3-Layer 4" Freezer; 5-Layer 6" Freezer; Heated or Unheated
- UL standards
- UL 471
- Differential pressure
- ±75PSF
- Availability
- Confirmed by D.W. Ross in the quote for your opening.
How Jamison builds it

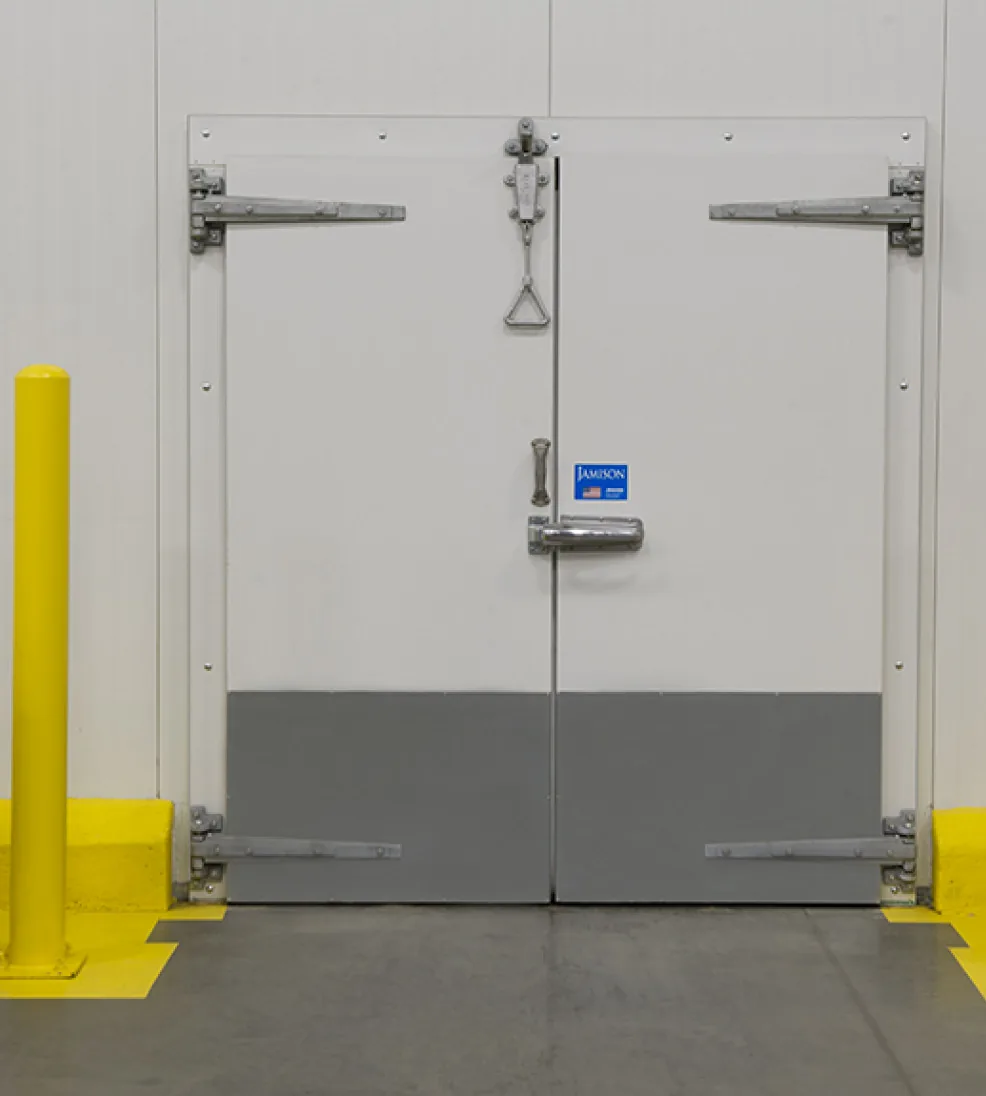

- Single, bi-parting double and track-port configurations.
- Self-rising hinges, which Jamison says ease installation and reduce gasket wear.
- Frostop heating element, sized to the room, for moisture control at the opening.
- Optional interior safety release for exit from inside the room.
- Optional metal cladding for meat-processing rooms.
- Jamison states the 4 in. core is rated R-32 at 20° F.
More photographs
Before you specify it
- Jamison's specification table prints the panel insulation line under the heading "Operator Power Supply". It is shown here under what it describes. The data sheet is the reference.
Jamison literature
We send Jamison’s current sheet with the quote, so you are never working from an old revision. Send it back with your drawings and we will check the door against the opening.
- Data sheetJamison Product Datasheet - Jamofoam I Swing DoorsPDF
Product data and images: Jamison Door Company. Values as published by Jamison on its product pages; the current Jamison data sheet is the reference, and D.W. Ross supplies it with the quote. Read on 2026-10-14 from Jamison’s public product page for the Jamofoam® I Swing Commercial Cooler Doors.
Tell us about the opening.
The opening size, the temperature on each side, the traffic and how the room is cleaned. We confirm the door, its rating and its options, and quote it.
