Jamison · Swing cooler and freezer doors
Jamofoam II Swing Freezer Door
The freezer version of the Jamofoam II hinged door: aluminum and stainless steel over 4 in. of polyurethane, single or double swing, with a heated frame and sweep gasket.
D.W. Ross supplies Jamison cooler, freezer and clean-room doors, sized to the opening before anything is ordered. It can install the door it supplies or deliver it material-only for your contractor.
Specifications
As published by Jamison for the Jamofoam® II Swing Freezer Door.
Jamison Jamofoam II Swing Freezer Door
Send the opening size and the temperature on each side. We confirm the door, its rating and its options.
Request a quote →- Manufacturer
- Jamison Door Company
- Catalog group
- Swing cooler and freezer doors
- Data read on
- 2026-10-14
- Door type
- Swing
- Application
- Freezer, Blast freezer
- Jamison line
- Jamofoam (Jamodoor industrial doors)
- Formerly sold as
- Plyfoam II
- Maximum size
- W 6' x H 9'
- Working temperature
- -20° to 165° F
- Frame
- Metal clad (wood)
- Jambs and trim
- Metal clad or aluminum
- Panel insulation
- FIP HFO PU aluminum structure 4" 32 @ 20° F or 6" R48 @ 20° F
- Vision window
- 12" x 14" standard tempered glass; 2-Layer Cooler
- UL standards
- UL 471
- Differential pressure
- ±75PSF
- Availability
- Confirmed by D.W. Ross in the quote for your opening.
How Jamison builds it
- Aluminum and stainless steel construction over 4 in. of non-CFC polyurethane.
- Single or double swing; optional touchless opening and closing.
- Frostop heating keeps panel and frame warm; a sweep-type sill gasket helps against condensation and ice.
- Suited to blast freezer setups, per Jamison.
- Ships pre-drilled and pre-tapped.

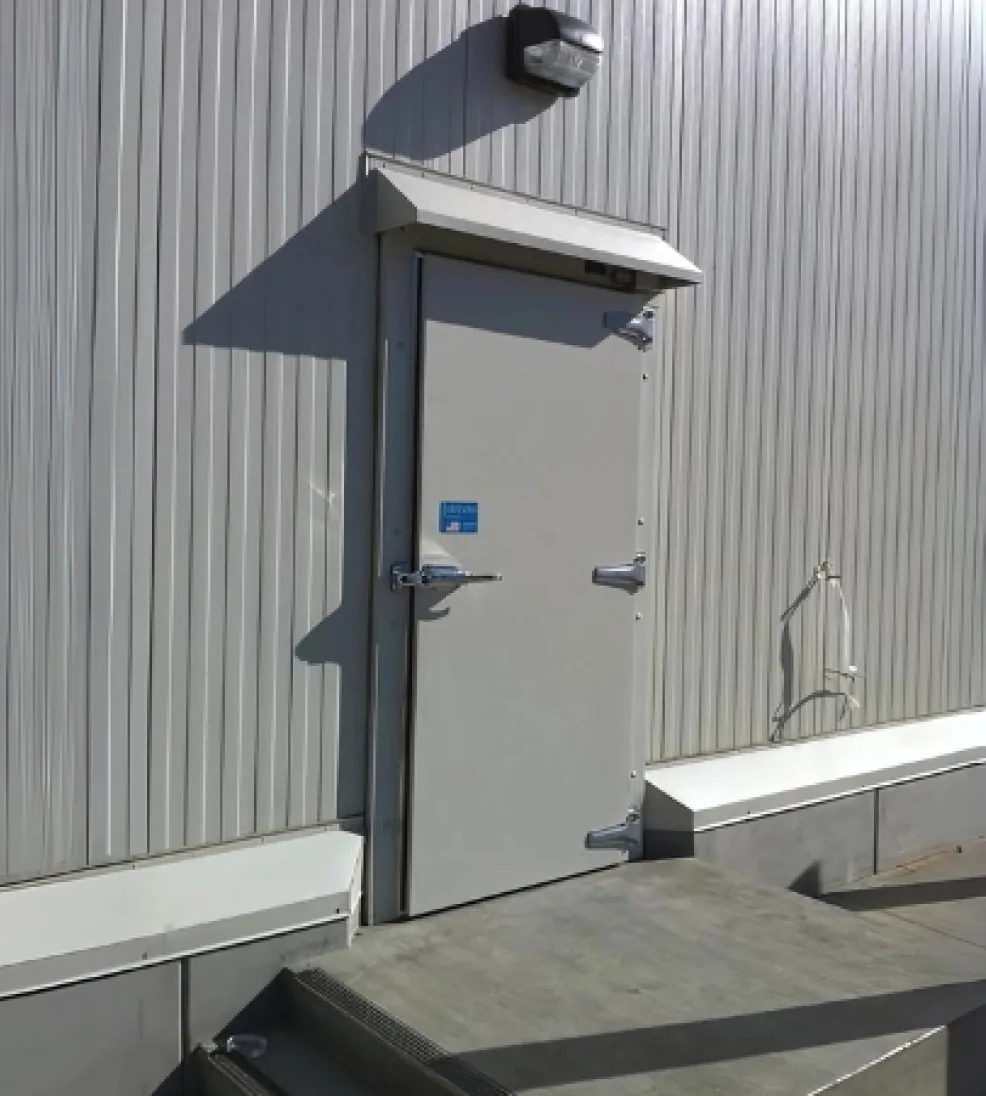

More photographs
Before you specify it
- Jamison's specification table prints the panel insulation line under the heading "Operator Power Supply". It is shown here under what it describes. The data sheet is the reference.
- Jamison notes that where the temperature difference across the door is greater than 90° F, the door is reviewed with Jamison before it is ordered. D.W. Ross raises that with Jamison for you.
Jamison literature
We send Jamison’s current sheet with the quote, so you are never working from an old revision. Send it back with your drawings and we will check the door against the opening.
- Data sheetJamison Product Datasheet - Jamofoam II Swing DoorsPDF
Product data and images: Jamison Door Company. Values as published by Jamison on its product pages; the current Jamison data sheet is the reference, and D.W. Ross supplies it with the quote. Read on 2026-10-14 from Jamison’s public product page for the Jamofoam® II Swing Freezer Door.
