CLEANsafe 120
A chemically inert PVC film laminated to pre-treated metal, ordered on the panel face where wash-down chemicals and humidity would take an ordinary paint finish apart.
Ordered as the face finish on the panels D.W. Ross supplies. We help decide where it is worth it and where a standard finish will do.
Specifications
As published by Kingspan. Used for: Food processing, Clean rooms and labs, Cold storage.
- Composition

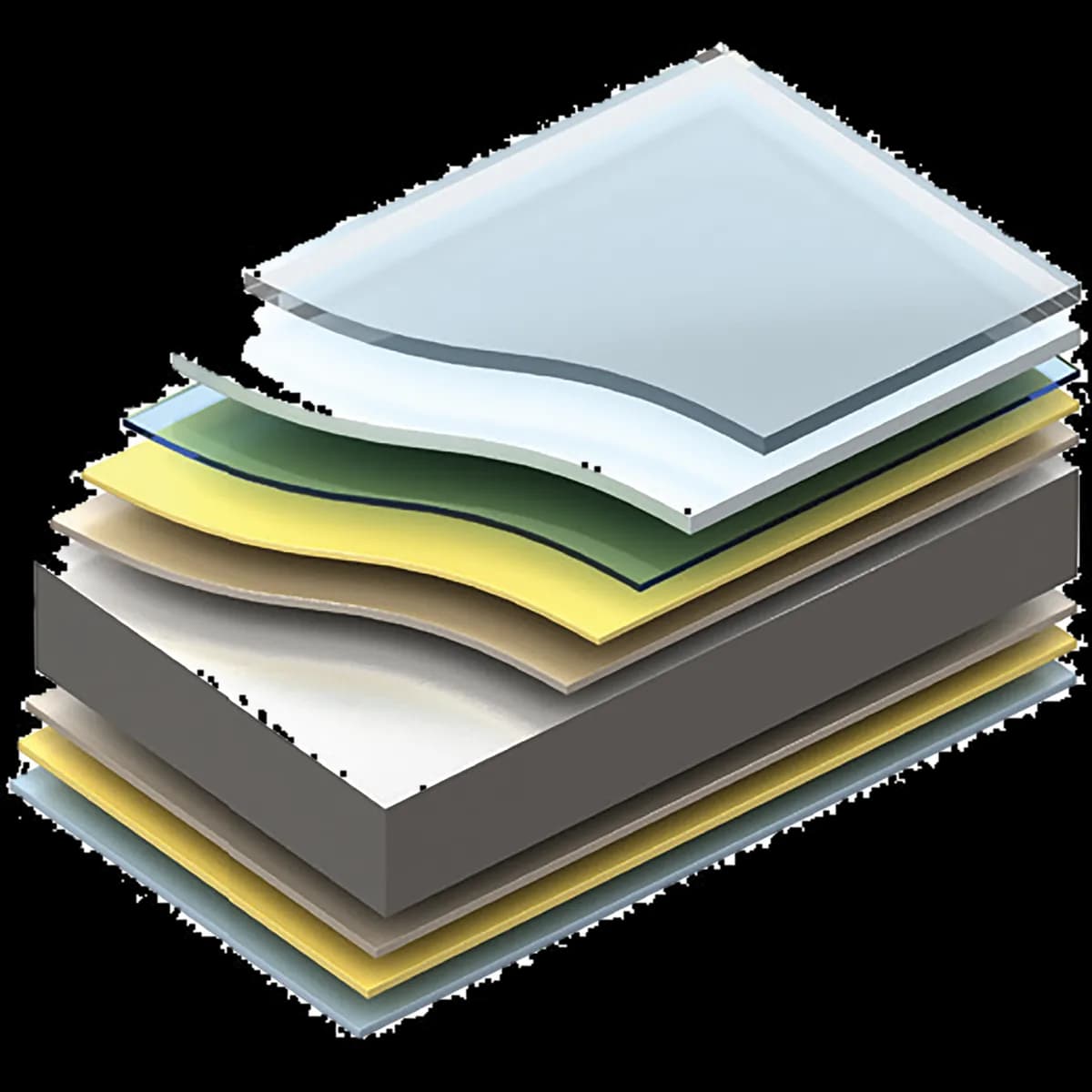

- Chemically inert polyvinyl chloride (PVC) film, laminated to pre-treated metal, for internal controlled environments.
- Film
- Rigid polyvinyl chloride (PVC), phthalate free.
- Standard metal support
- Continuously hot-dip zinc coated low carbon for cold forming, type DX51D (UNI EN 10346).
- Other metal support
- Stainless steel (UNI EN 10088-1).
- Salt spray
- 200 hours on cold-rolled support, 500 hours on hot-dip zinc support (ECCA T8, ASTM B117).
- 100% relative humidity
- 1000 hours (ASTM D2247).
- Pencil hardness
- HB (ECCA T4, ASTM D3363).
- Bending
- ½T (ECCA T7).
- Adhesion after 6 mm drawing
- No film detachment (ECCA T6).
- Rapid deformation
- No detachment and breaking of film (ASTM D2794, 2 kg weight, 90 cm fall).
- Availability
- Confirmed by D.W. Ross in the quote for your project.
Before you specify it
- Kingspan's cleaning guidance: soft water and neutral detergents, rinsed and dried with a soft cloth. No abrasive products.
Kingspan documents
These open on Kingspan’s site, so you always get the current revision. Send the data sheet and span table with your drawings and we will check the panel against the room.
Product data and images: Kingspan Insulated Panels and Kingspan Insulation. Values as published by Kingspan; the data sheet linked on each page is the current reference. Read on 2026-10-12 from Kingspan product page: CLEANsafe 120.
Tell us about the room.
Design temperature, size, wash-down and fire requirements, or the drawings. We confirm the panel, thickness, gauge and finish, and quote it.
