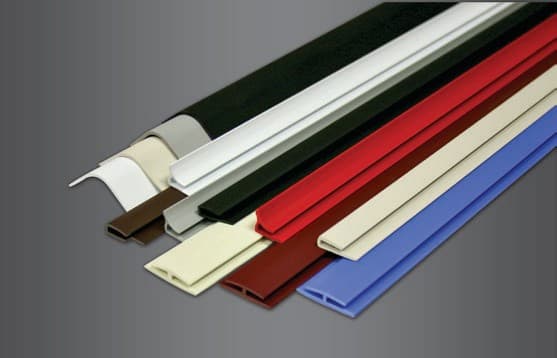

Lengths of vinyl panel molding in white, black, red, blue, brown and beige, fanned out to show each profile at its cut end.
Building Products · FRP

FRP trim and moldings.

FRP trim and moldings: inside and outside corners, division bars, caps and base, in vinyl matched to the panel color or in aluminum where the corner takes a beating.

D.W. Ross supplies FRP trim; the contractor doing the work installs it.

Call (216) 631-8080Send the panel and run ↓The panel thickness and color, and the run of wall. Monday – Friday, 8:00 AM – 4:00 PM.

Moldings supplied with the sheets.

Corners, division bars, caps and base, in the same color as the panel, or in aluminum where the corner takes a beating.

The trim is chosen by the panel thickness it has to fit, and the same profiles finish our laminated panel work.

What the trim does.

Inside corners and cove

Closes the inside corner and the joint at the floor.

Outside corners

Protects the corner that gets hit.

Division bars

Joins panel to panel down the run of a wall.

Caps

Finishes the top edge of a panel run.

Profiles we supply.

We supply the moldings with the sheets — corners, division bars, caps and base — in the same color as the panel, or in aluminum where the corner takes a beating. The same profiles finish our laminated panel work.

Vinyl and PVC

Extruded vinyl moldings that close the joints, the corners and the top edge of a panel run. The color range matches the panel range, so the trim disappears into the wall instead of outlining it.

Caps

Caps for corrugated aluminum-faced panel

  • V-161 profile, in sectionV-161Cap for .200 in. corrugated aluminum-faced panel, .350 in. face, .42 in. legsDetail sheet (PDF)
  • V-163 profile, in sectionV-163Cap for 0.320 in. corrugated aluminum-faced panel, 0.465 in. face, 0.42 in. legsDetail sheet (PDF)
  • V-165 profile, in sectionV-165Cap for .400 in. corrugated aluminum-faced panelDetail sheet (PDF)

Division bars

Two-piece division bars

Inside corner and cove

Outside corner

Combination inside and outside corner

Corner angles, inside and outside

Corner angles at 135 degrees

T-bars, including dual durometer

Batten strips

Base cover

Foam-panel caps and dividers

Slot wall insert

Stock lengths 8, 10 and 12 ft. Fourteen stock colors — white, black, pearl gray, dark gray, silver, blue, almond, bordeaux, khaki, brown, beige, red, pineapple and ivory, with white stocked in two shades. Each carries a color number, which is what an order desk wants. Special colors run against a minimum quantity, and custom lengths and profiles are available.

Aluminum

The same profile logic in extruded aluminum, for runs that take knocks or sit where a vinyl edge would not last. Rated by the manufacturer for exterior as well as interior use.

Caps

  • A-4 profile, in sectionA-4
  • A-28 profile, in sectionA-28

Division bars

  • A-30 profile, in sectionA-30

Inside corner and cove

  • A-32 profile, in sectionA-32

Outside corner

  • A-34 profile, in sectionA-34

Adjustable outside corner angle, 1 in. legs

  • A-20 profile, in sectionA-20

Corner angle, 2 in. legs

  • A-40 profile, in sectionA-40

Batten strips

  • A-14 profile, in sectionA-14

Stock lengths 8 and 10 ft. Anodized or white, depending on the profile. A-28, A-30, A-32 and A-34 run anodized only; white in those carries a minimum order and a longer lead time.

Corner angles, T-bars, batten strips and the base cover are chosen by the joint rather than by sheet thickness, so they are not repeated here.

.090 in. sheetCap V-1 Division bar V-3 Division bar, wide flange, also .120 in. V-3WF Two-piece division bar V-47 Inside corner and cover V-5 Outside corner V-7 Inside and outside corner V-171
.090 in. to .125 in. sheetLarge inside corner V-125 Large outside corner V-127
.136 in. to .170 in. panelDivision bar V-137
1/4 in. panelCap V-63 Division bar V-31
3/8 in. panelCap V-19 Cap, shallow leg V-113 Division bar V-9 Inside corner, also 1/2 in. V-21 Outside corner V-23
1/2 in. panelCap V-41 Cap, shallow leg V-115 Division bar V-43 Inside corner, also 3/8 in. V-21
5/8 in. panelCap V-17 Cap, deep leg V-53 Division bar V-39
3/8 in., 1/2 in. or 5/8 in. panelTwo-piece division bar V-55
3/4 in. panelCap V-67
3/4 in., 7/8 in. or 1 in. panelTwo-piece division bar V-57
1 in. panelCap V-61 Cap, full leg V-109 Division bar V-129
1 1/2 in. panelCap V-71
1 1/2 in. to 2 in. panelTwo-piece division bar V-133 Two-piece inside corner ceiling cove V-143
2 in. foam panelCap V-49 Divider V-51 Division bar, 1/4 in. V-119
Corrugated aluminum-faced panelCap, .200 in. V-161 Cap, 0.320 in. V-163 Cap, .400 in. V-165

Profile drawings and detail sheets are Nudo’s.

Panel thickness and color, and the run of wall with its corners. We will send the trim list with the sheets.

Call (216) 631-8080Send the panel and run ↓

Questions buyers ask

Do you sell FRP trim and moldings?

Yes: inside and outside corners, division bars, caps and base, supplied with the sheets.

Does FRP trim come in colors?

Yes. Vinyl moldings come in the panel's color range, so the trim disappears into the wall. Aluminum is available where the corner takes a beating.

How do I choose the right FRP molding?

By the panel thickness it has to fit and what the joint does: corner, division, cap or base. Send the panel thickness and the wall layout; the trim list comes back with the sheet order.

Related: FRP panels, colored FRP panels and prelaminated FRP panels.

Talk to D.W. Ross

Send the panel and the run.

Panel thickness and color, wall lengths and corner count.
