Jamoglide Retail Sliding Freezer Door
A single-leaf sliding freezer door sized for grocery and retail back rooms, up to 8 ft. by 10 ft., manual or with a low-energy power operator.
D.W. Ross supplies Jamison cooler, freezer and clean-room doors, sized to the opening before anything is ordered. It can install the door it supplies or deliver it material-only for your contractor.
Specifications
As published by Jamison for the Jamoglide™ Retail Sliding Freezer Supermarket Doors.

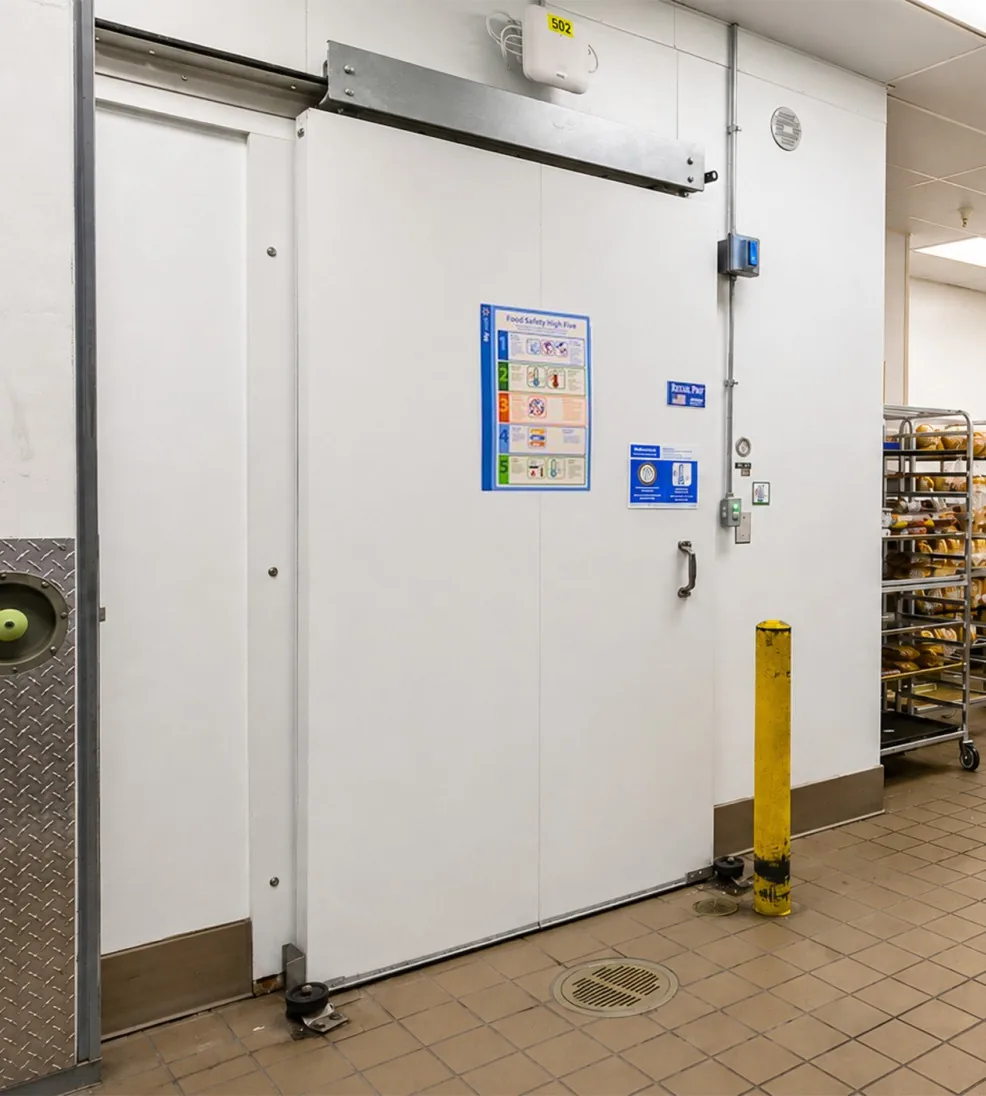

Jamison Jamoglide Retail Sliding Freezer Door
Send the opening size and the temperature on each side. We confirm the door, its rating and its options.
Request a quote →- Manufacturer
- Jamison Door Company
- Catalog group
- Sliding and vertical-lift cooler and freezer doors
- Data read on
- 2026-10-14
- Door type
- Horizontal sliding
- Application
- Freezer, Retail
- Jamison line
- Jamoglide Retail (Jamodoor industrial doors)
- Formerly sold as
- Retail Pro
- Maximum size
- W 8' x H 10'
- Working temperature
- -15° to 165° F (Freezer and Cooler)
- Opening speed
- Up to 30"/sec
- Motor
- 1/8HP 18VDC brushless motor
- Safety
- Amp draw reversal
- Track
- Aluminum with UHMW-PE rail
- Panel
- FIP HFO PU aluminum structure
- Vision window
- 12" x 14" standard tempered glass; 2-Layer cooler
- NEMA enclosure options
- NEMA 1, 4, or 4X
- UL standards
- UL 471 & UL 325
- Availability
- Confirmed by D.W. Ross in the quote for your opening.
How Jamison builds it
- Single-leaf sliding door, manual or automated.
- Diamond-Trac roller system in aluminum and UHMW polyethylene.
- Frostop heated frame and door.
- White metal-clad finish; adjustable panel for gasket sealing; optional pry bar assist.

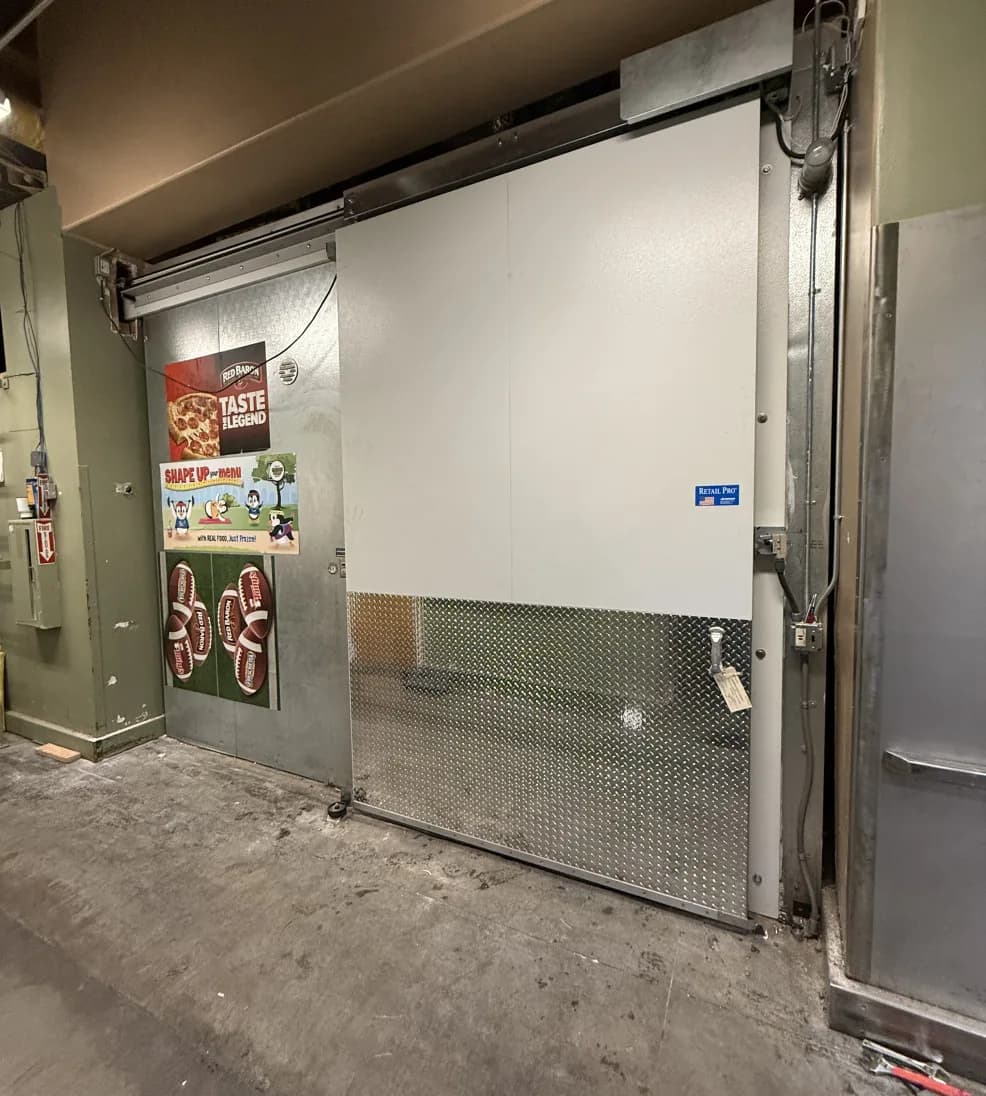

More photographs
Before you specify it
- Jamison notes that where the temperature difference across the door is greater than 90° F, the door is reviewed with Jamison before it is ordered. D.W. Ross raises that with Jamison for you.
Jamison literature
We send Jamison’s current sheet with the quote, so you are never working from an old revision. Send it back with your drawings and we will check the door against the opening.
- Data sheetJamison Product Datasheet - Jamoglide Retail Sliding DoorsPDF
Horizontal sliding
Jamoglide Horizontal Sliding Freezer Door
Product data and images: Jamison Door Company. Values as published by Jamison on its product pages; the current Jamison data sheet is the reference, and D.W. Ross supplies it with the quote. Read on 2026-10-14 from Jamison’s public product page for the Jamoglide™ Retail Sliding Freezer Supermarket Doors.
