Jamoclear See-Thru Swing Cooler Door

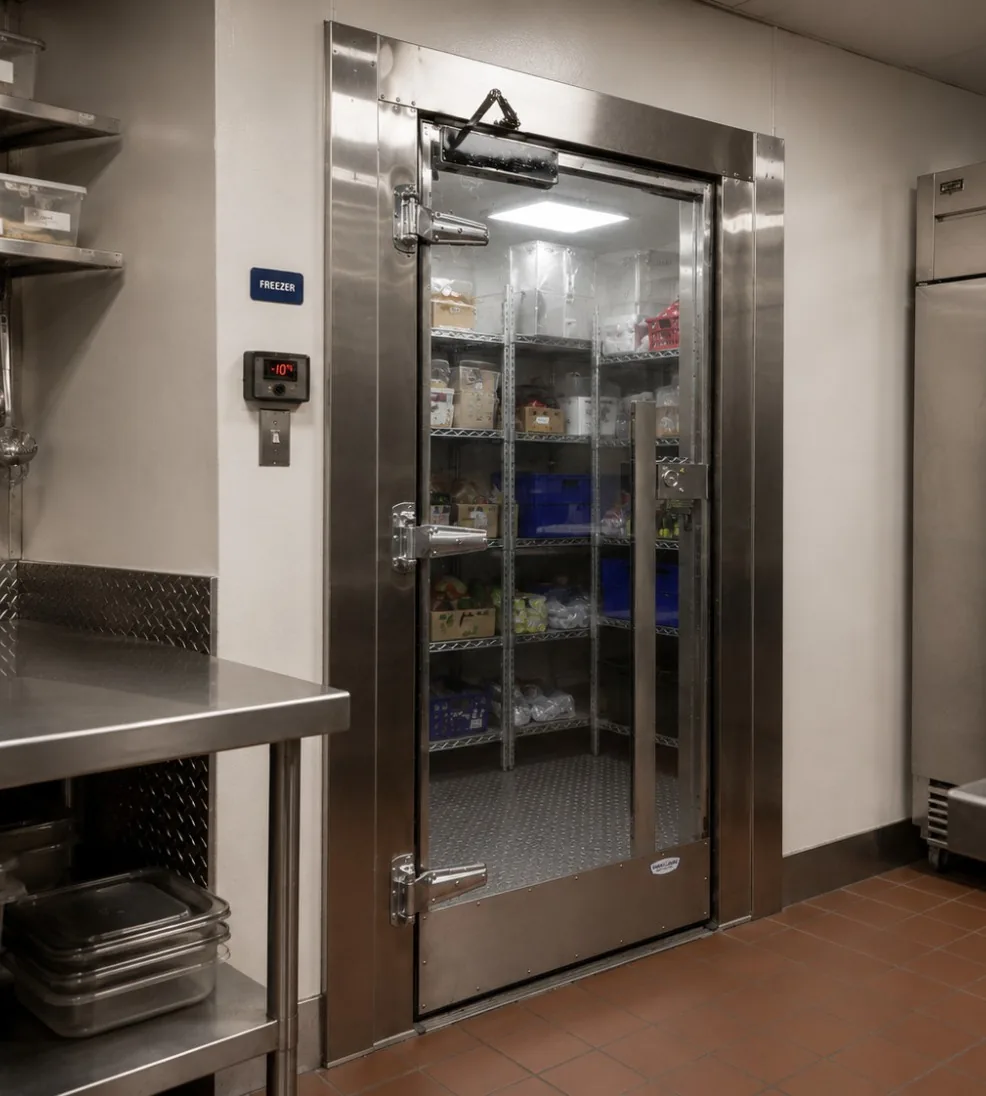

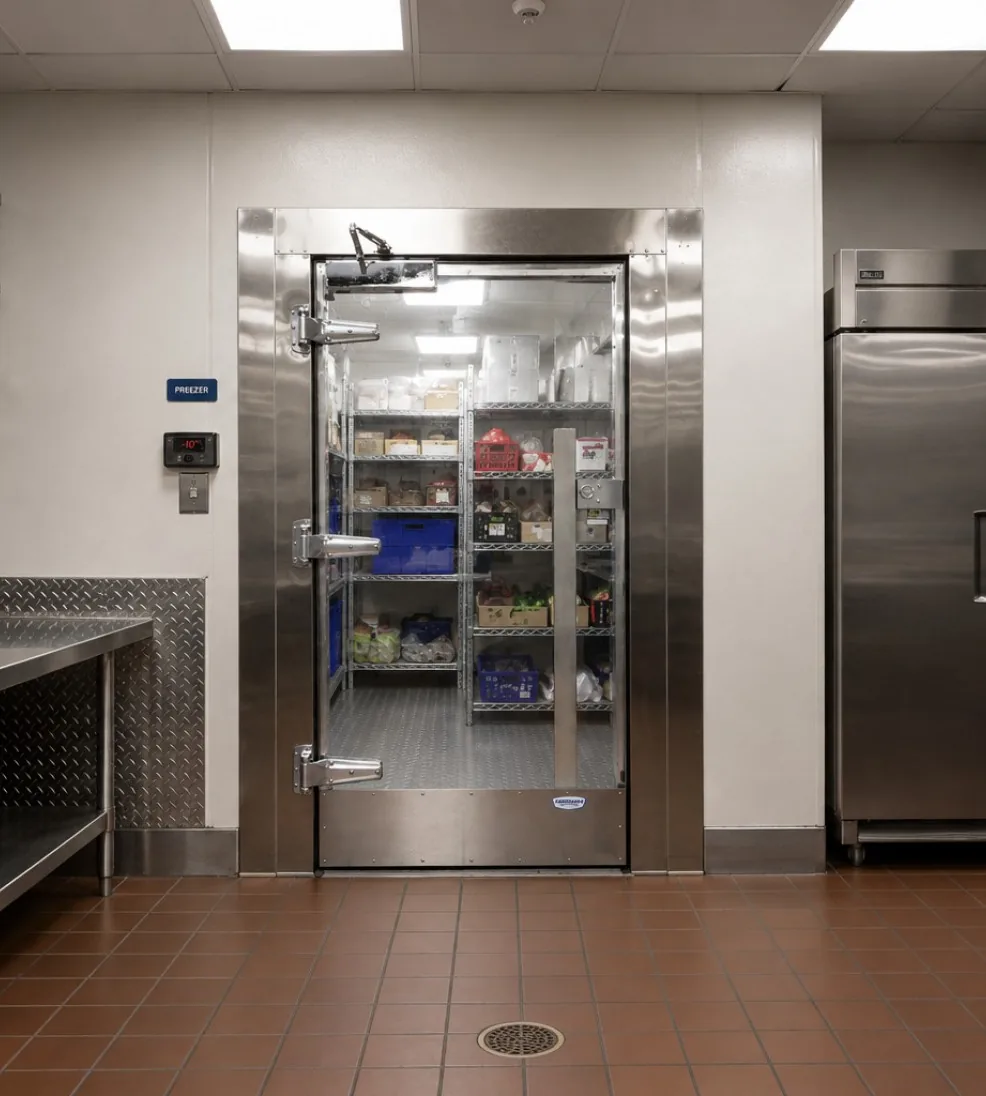

A manual swing cooler door with a 1 in. clear cast acrylic panel, so staff can see the shelves without opening it. Jamison designs it for rooms held above 33° F.
D.W. Ross supplies Jamison cooler, freezer and clean-room doors, sized to the opening before anything is ordered. It can install the door it supplies or deliver it material-only for your contractor.
Specifications
As published by Jamison for the Jamoclear® See-Thru Plastic Swinging Cooler Doors.
Jamison Jamoclear See-Thru Swing Cooler Door
Send the opening size and the temperature on each side. We confirm the door, its rating and its options.
Request a quote →- Manufacturer
- Jamison Door Company
- Catalog group
- Swing cooler and freezer doors
- Data read on
- 2026-10-14
- Door type
- Swing (clear panel)
- Application
- Cooler
- Jamison line
- Jamoclear (Jamodoor industrial doors)
- Panel
- 1″ thick, clear cast acrylic (Type #1 Grade A) meeting Federal Specification L-P-391C
- Temperature
- Designed for temperatures above 33°F
- Frame
- Heavy-duty stainless steel–clad frame and #16-gauge toe plates on both sides of the door
- Operation
- Manual
- Availability
- Confirmed by D.W. Ross in the quote for your opening.
How Jamison builds it
- 1 in. thick clear cast acrylic panel (Type #1 Grade A, Federal Specification L-P-391C).
- Heavy-duty stainless steel-clad frame with #16-gauge toe plates on both sides.
- 5 ft. stainless steel pull on the front and a stainless push plate.
- Extruded synthetic rubber gaskets at the sides and head.
More photographs
Before you specify it
- Jamison's page carries no specification table for this door. The values above are from its feature text; maximum sizes come from the data sheet, in the quote.
Jamison literature
We send Jamison’s current sheet with the quote, so you are never working from an old revision. Send it back with your drawings and we will check the door against the opening.
Jamison’s page lists no separate sheet for this door; we request it from Jamison.
Product data and images: Jamison Door Company. Values as published by Jamison on its product pages; the current Jamison data sheet is the reference, and D.W. Ross supplies it with the quote. Read on 2026-10-14 from Jamison’s public product page for the Jamoclear® See-Thru Plastic Swinging Cooler Doors.
Tell us about the opening.
The opening size, the temperature on each side, the traffic and how the room is cleaned. We confirm the door, its rating and its options, and quote it.
